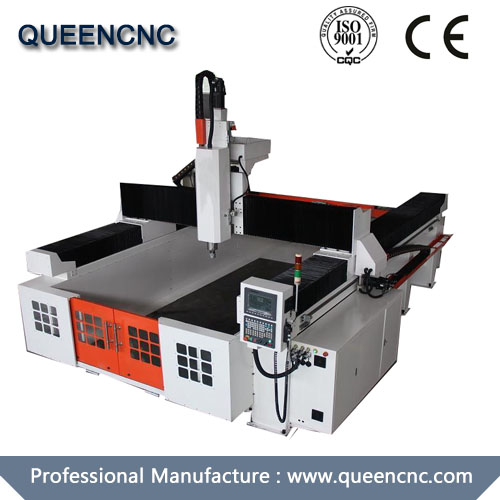

Styrofoam Moulding CNC Machine
|
Description & Specifications: |
|
X Working Area(left and right moving) |
2000mm |
|
Y Working Area |
4000mm |
|
Z Feeding height |
1500mm |
|
Traveling Positioning Accuracy |
±0.05mm |
|
Repositioning Positioning Accuracy |
±0.05mm |
|
Machine Structure |
Casted iron |
|
X,Y ,Z Structure |
XY gear wheel, Z ball screw |
|
Max. Rapid Travel Rate |
16000mm/min |
|
Max. Working Speed |
12000mm/min |
|
Spindle |
ATC 7.5kw oil cooling spindle |
|
Spindle Speed |
0-12000r/min |
|
Drive Motor |
Japan Yaskaka 1.3KW |
|
Driver |
Japan Yaskawa |
|
Command |
G-code*.u00*.mmg*.plt |
|
Working voltage |
AC380V/60Hz |
|
Control System |
Taiwan Syntec11MA control system |
|
Guide rail |
30 Square rail (TAIWAN BRAND) |
|
Z axis reductio |

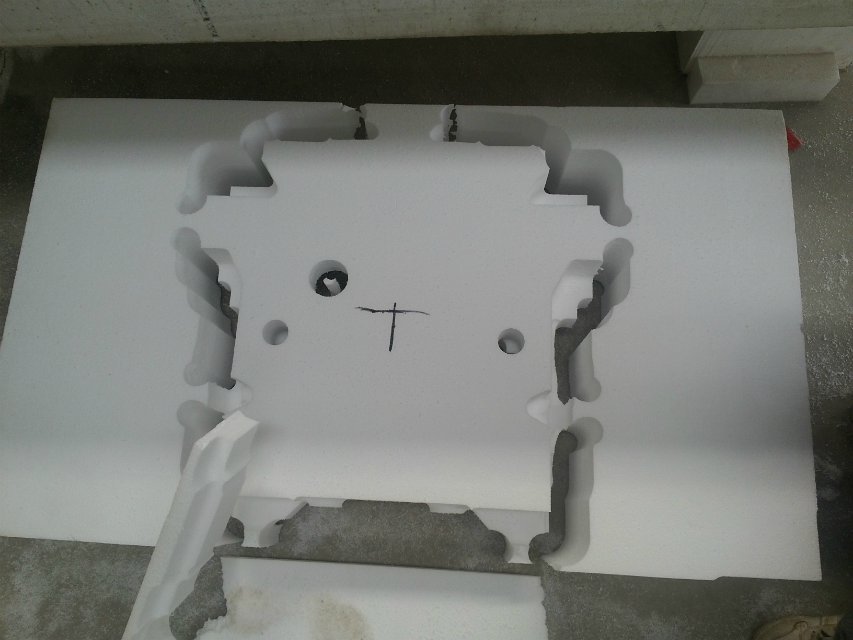

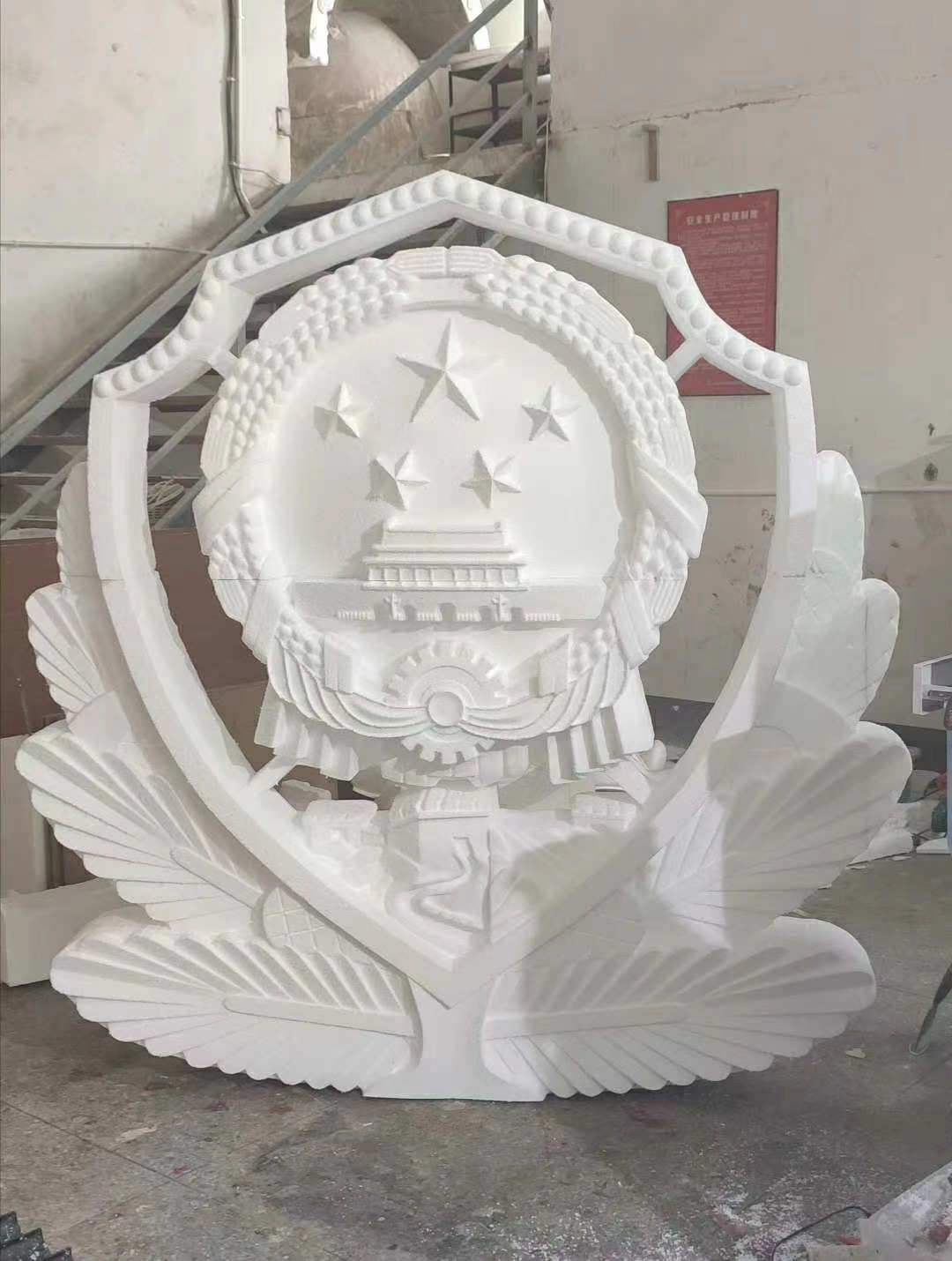

Samples
