QN1550 Hot Wire Foam Cutting Machine
QN1550
【Features】

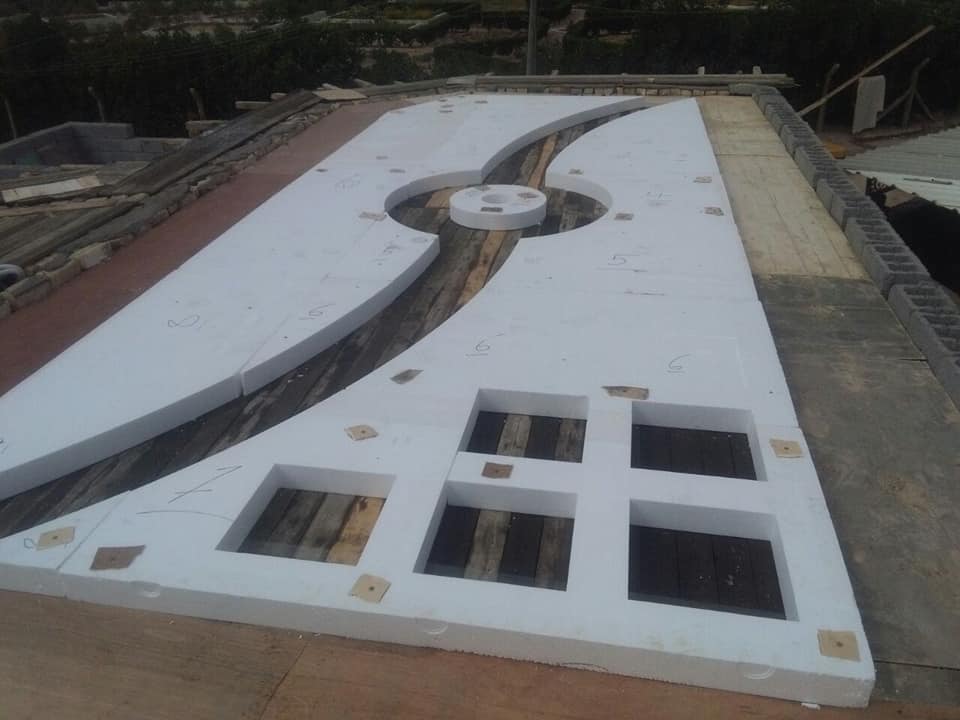

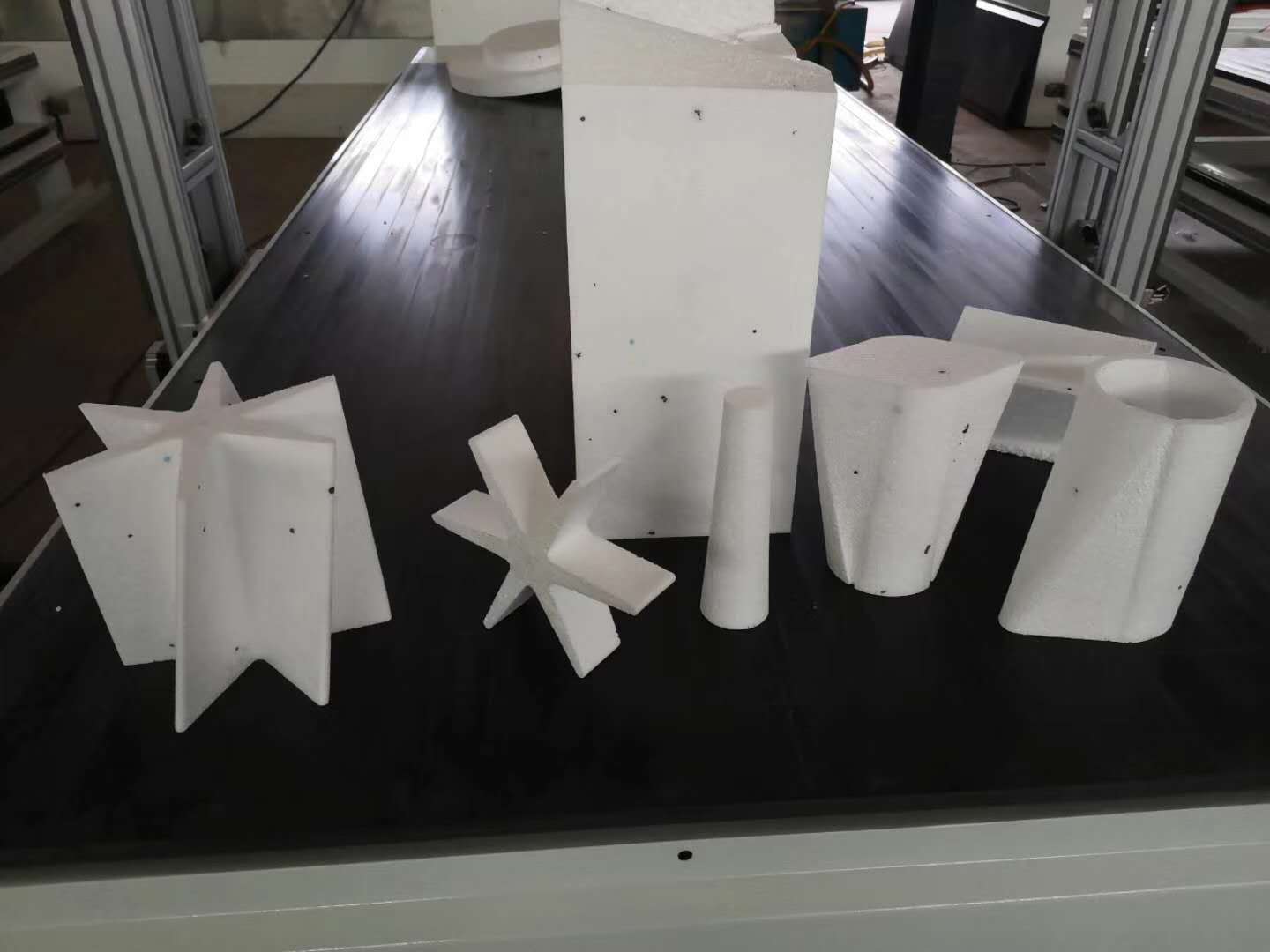

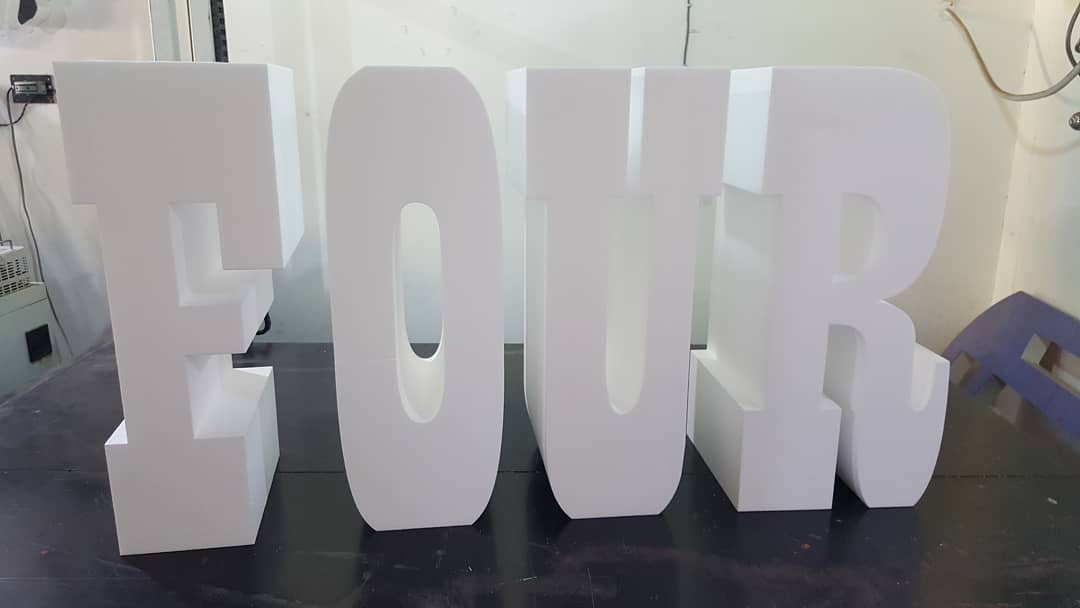

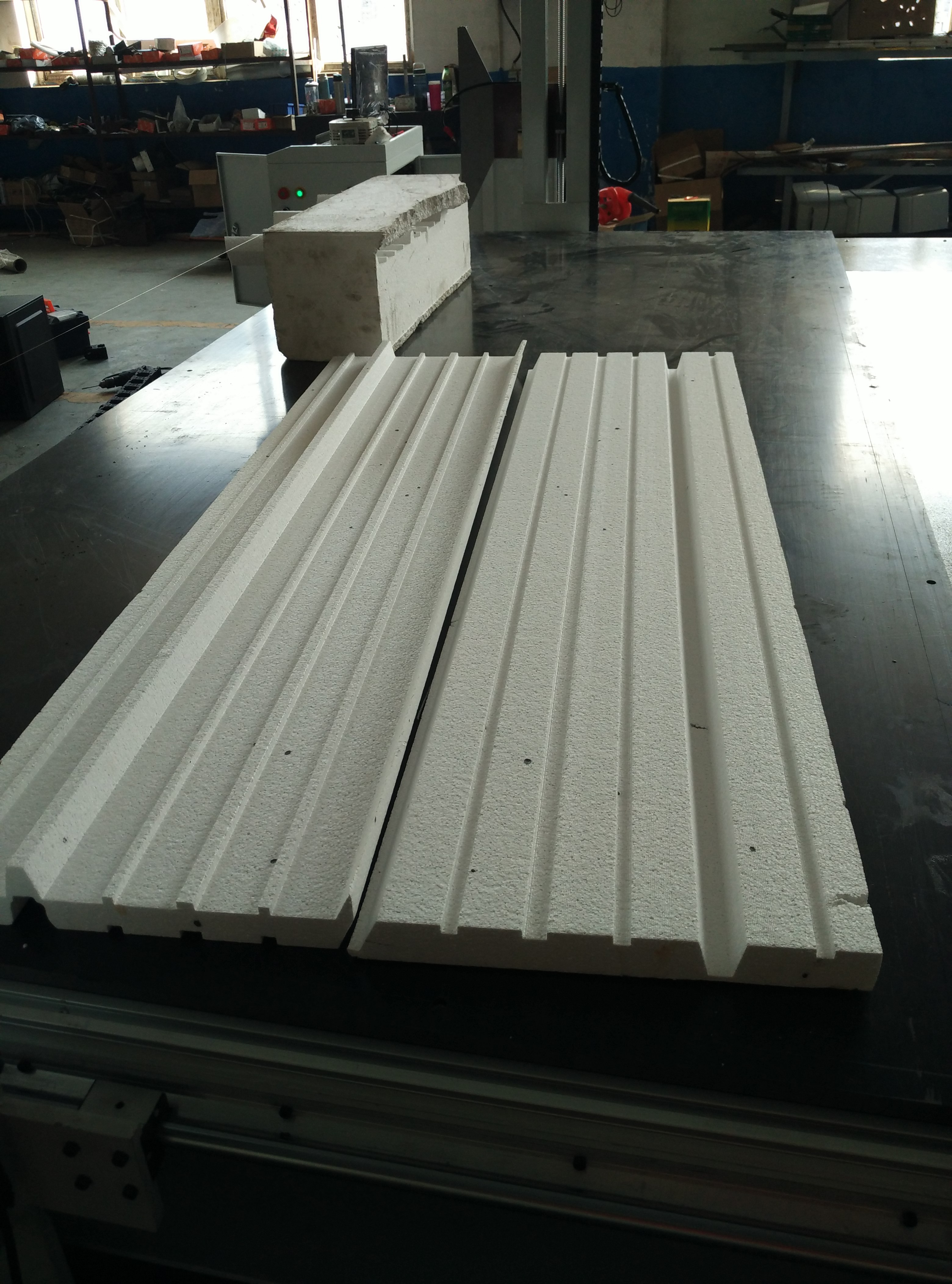

Hot wire foam cutting machine is controlled by computer,the drawing and cutting software support English and Chinese,easy to operate:the users make drawing in software,then convert into cutting code,the machine will run automatically. Mainly used for: complex 3d design tool symbols, letters, text graphics architectural appearance, architectural decoration components, architectural models, exhibition booths and so on.
【Product Parameters】
|
Model |
QN1550 |
|
Multi wires |
support max 10 wires |
|
X Working Area |
1500mm |
|
Y Working Area |
5000mm |
|
Z Working Area |
1300mm |
|
Repositioning Positioning Accuracy |
±0.2mm |
|
Working dpi |
±0.04mm |
|
Rotating Speed |
0-6000mm/min |
|
Machine Structure |
Thick welded steel |
|
Command |
G-code*.u00*.mmg*.plt |
|
Working voltage |
AC220V/50HZ |
|
Control System |
DSP handle |
|
Guide Rail |
High Precision Taiwan Round guide |
|
Voltage regulator |
5KV |
|
Software |
Autocad |
|
Driver and motor |
Stepper |
|
Computer |
Industrial Computer |
