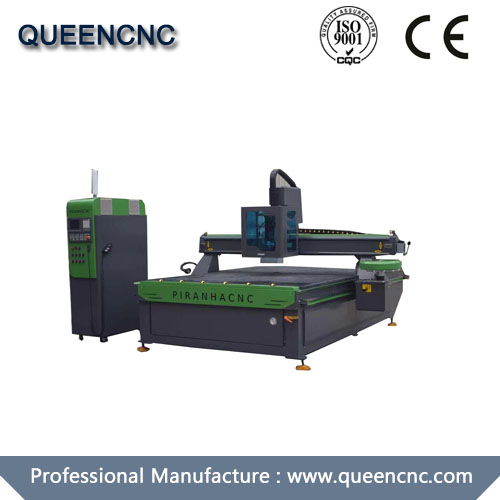

QN2030C 2*3M Carousel ATC CNC Woodworking Machine

【Parameters】

Model (option)  QN2030C
X,Y,Z axis working area 2000*3000*300mm
Guide rail Square guide linear rail from taiwan
X,Y structure High-precision rack and pinion transmission
Z axis ball screw
Control system Syntec60W-E control/LNC/MACH3
Whole structure Cast steel
Max.engraving speed 40m/min
Maxing cutting speed 25m/min
Resolution 0.01mm
Processing accuracy <0.05mm

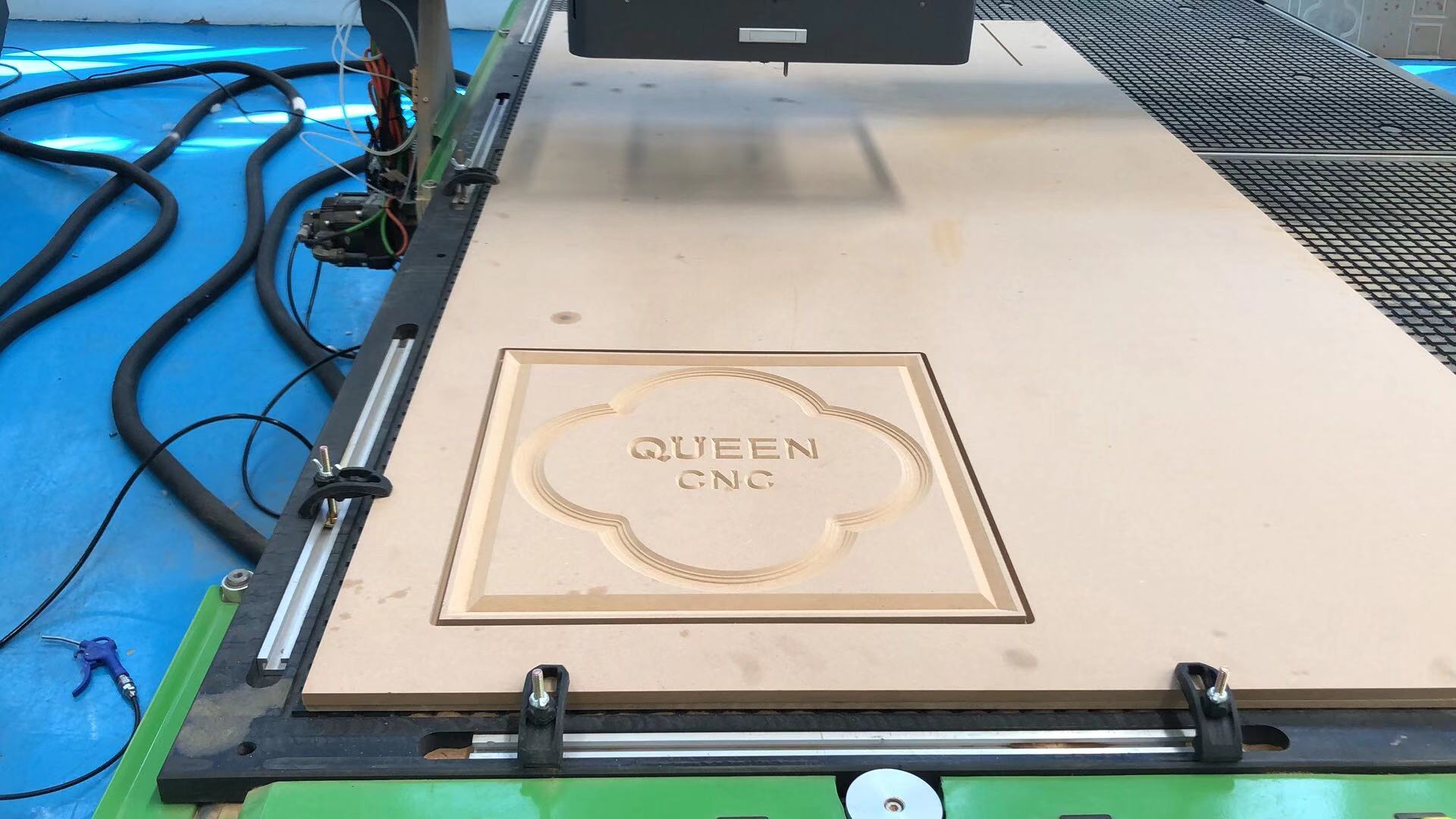

Wood holding Vacuum absorption(by suction)
Competitive software AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill
Imagine format graphic BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF
Spindle power (you can choose) 9kw spindle
Spindle rotating speed 6000-24000rmp/min

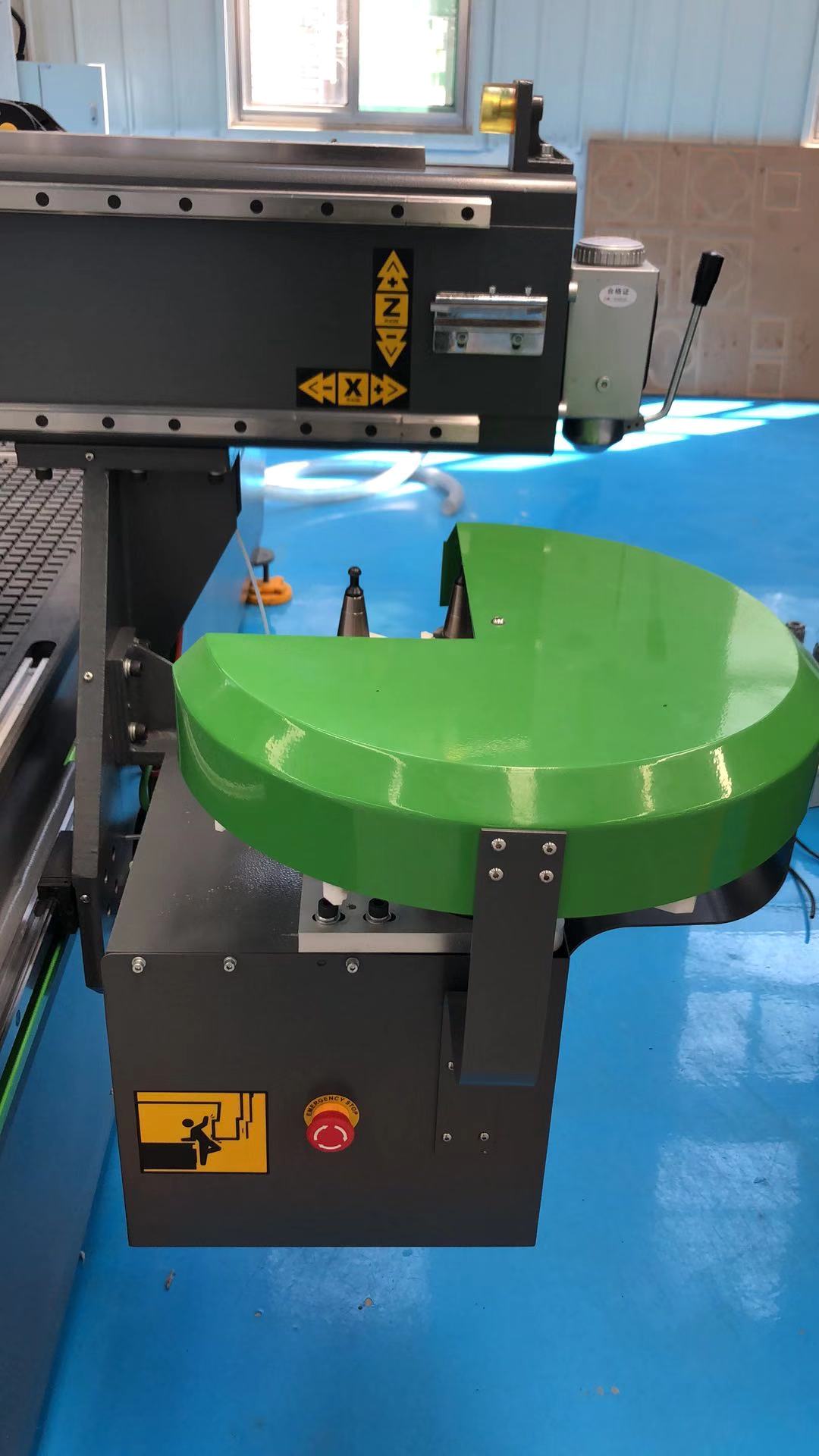

Tool magazine 12 pieces of cutters
Diameter of cutter φ3.175~φ25

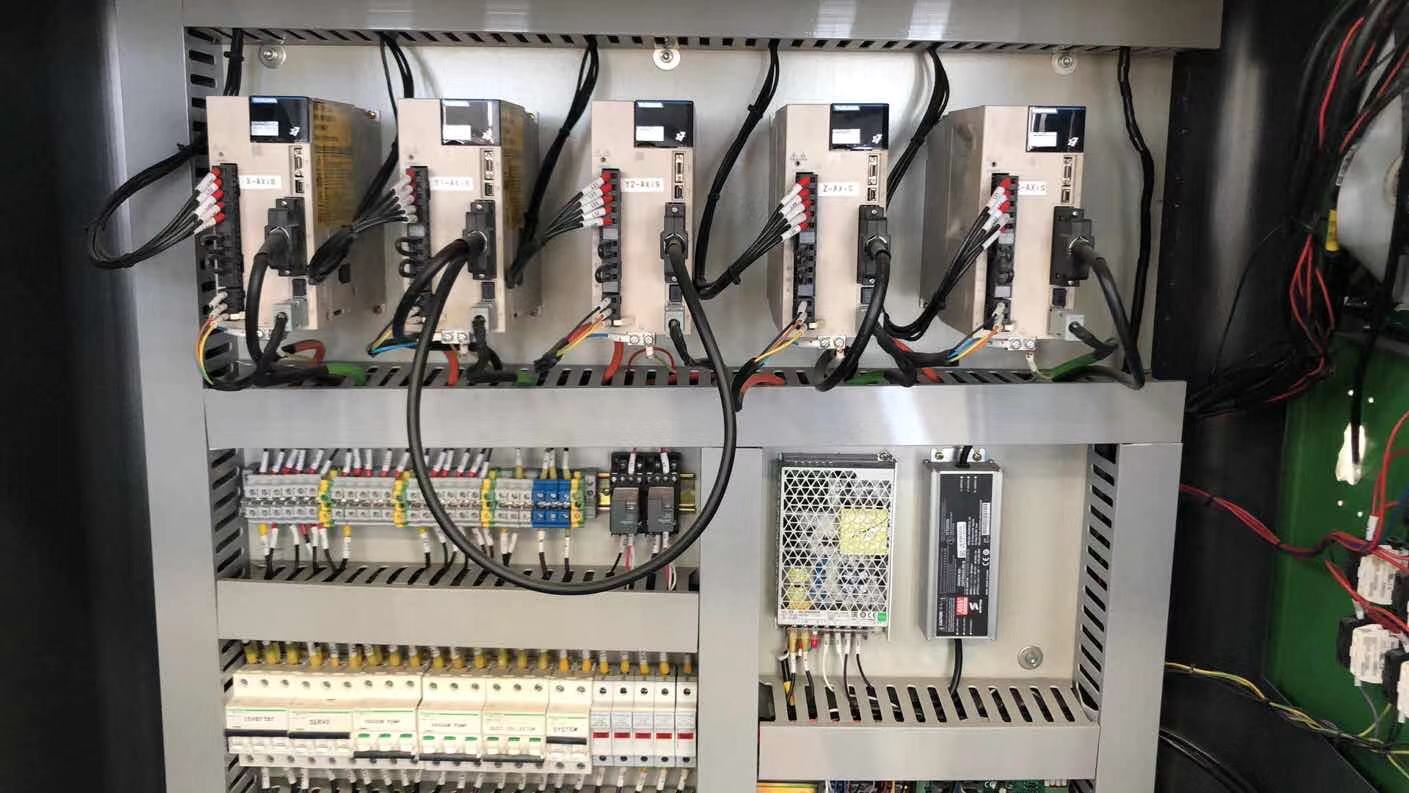

Driving system servo system yaskawa
Operate language G code,plt,mmg,uoo,bmp,F/S
Working voltage AC380V/50Hz
Running environment Temperature:0-45;Humidity:30%~70%
With Optional parts Vacuum worktable


【Details】





【Buy Tips】

This carousel atc cnc,you can choose different working area,such as
1300*2500mm,1500*3000mm,2100*2800mm,1300*5000mm,2000*5000mm,2000*6000
mm and so.And main configuration difference is:you can choose chinese atc spindle,but
also can choose HSD atc spindle.And you also choose LNC Control system.
