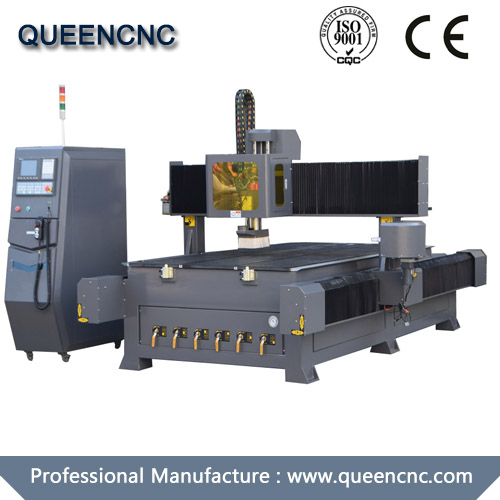

QN1325 DISC Automatic Tool Changer CNC Router

Configurations:


Model (option)  QN1325 ATC CNC
X,Y,Z axis working area 1300*2500*200mm
Guide rail Square guide linear rail 25 from taiwan
X,Y structure High-precision rack and pinion transmission
Z axis ball screw
Control system SYNTEC control
Whole structure Cast steel
Max.engraving speed 35m/min
Maxing cutting speed 25m/min
Resolution 0.01mm
Processing accuracy <0.05mm
Wood holding Vacuum absorption(by suction)
Competitive software AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill
Imagine format graphic BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF
Spindle power (you can choose) 5.5kw water spindle
Spindle rotating speed 6000-18000rmp/min

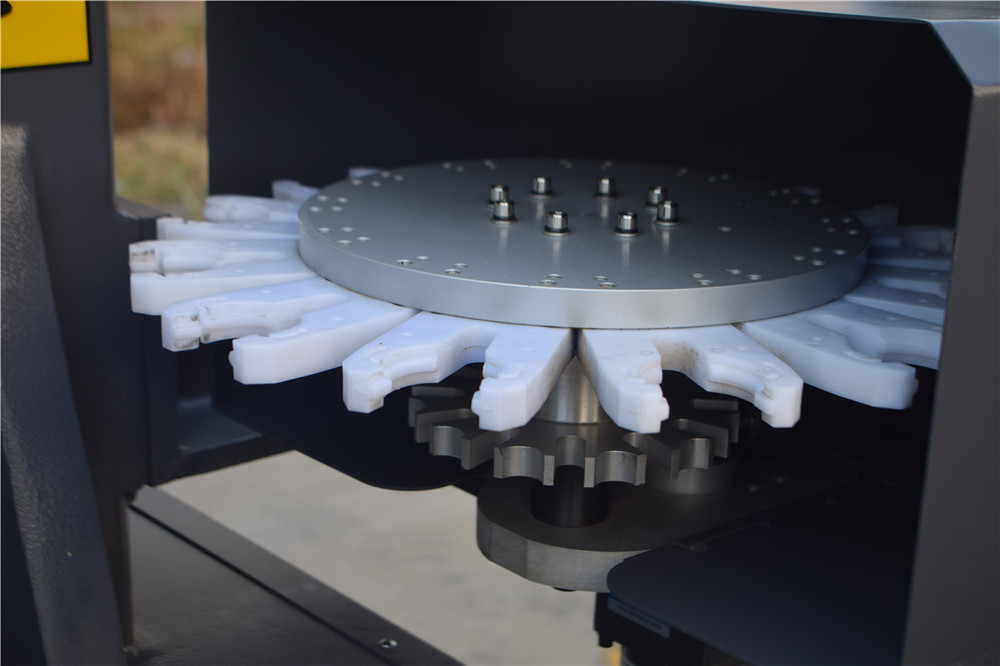

Tool magazine 12 pieces of cutters
Diameter of cutter φ3.175~φ20
Driving system servo system (delta)
Operate language G code,plt,mmg,uoo,bmp,F/S
Tool changing time 2 seconds
Working voltage AC380V/50Hz
Running environment Temperature:0-45;Humidity:30%~70%
With Optional parts Vacuum worktable
Machine parts  5.5kw water cooling spindle
Delta servo motor and driver
Syntec control system
Taiwan hiwin squarer guide rail
inverter equipment
vacuum pump and vacuum worktable( 7.5kw vacuum pump,32 vaccum holes)

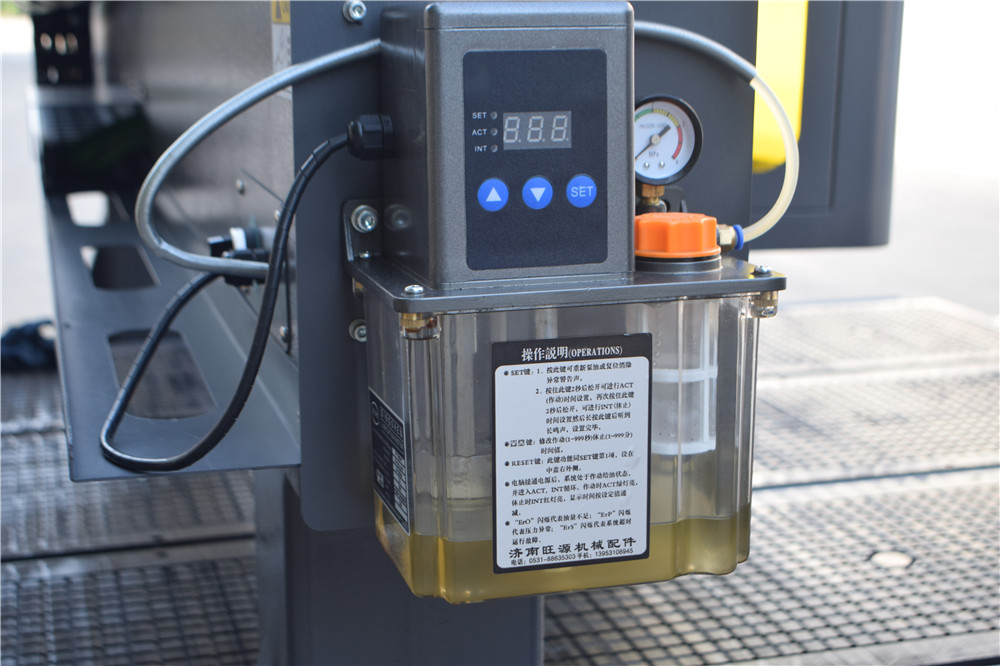

oil lubricating system
automatic tool measurement
12 tool holders and collets
control box/wrench/brush
user manual /CD video/design software

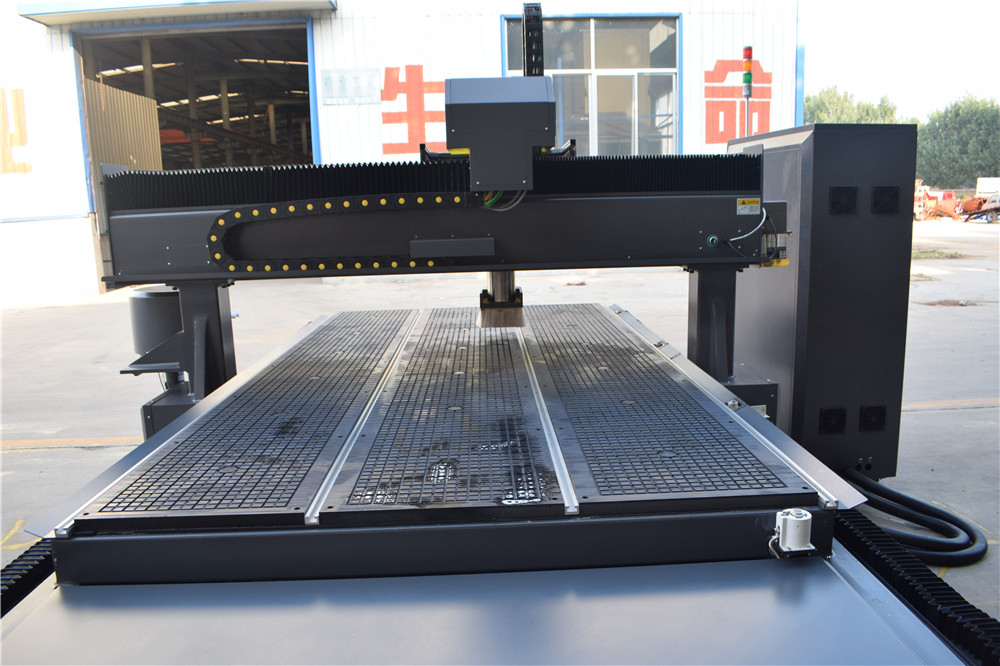

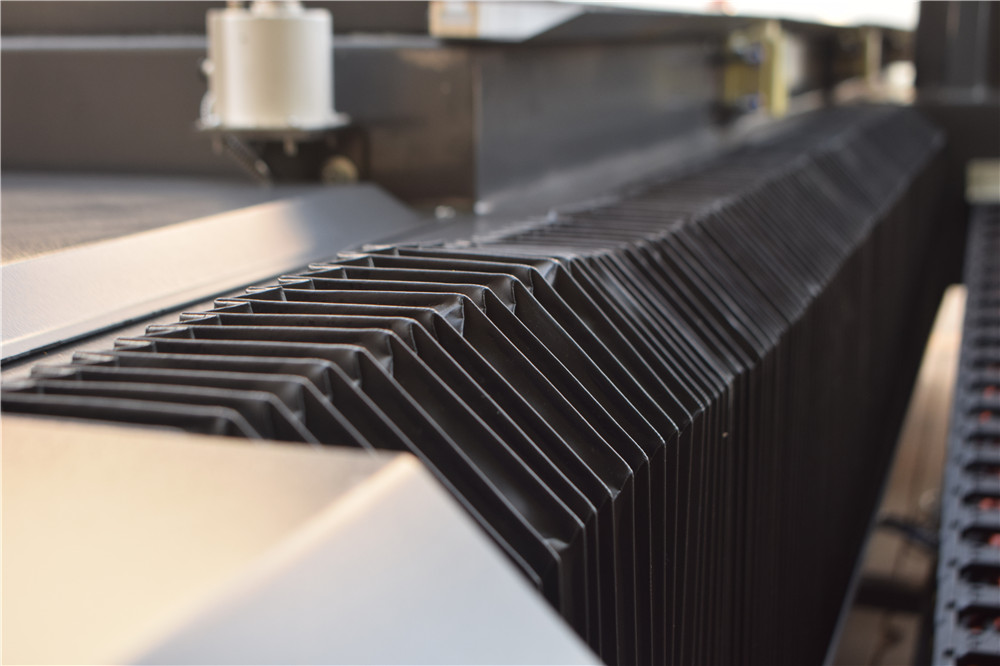

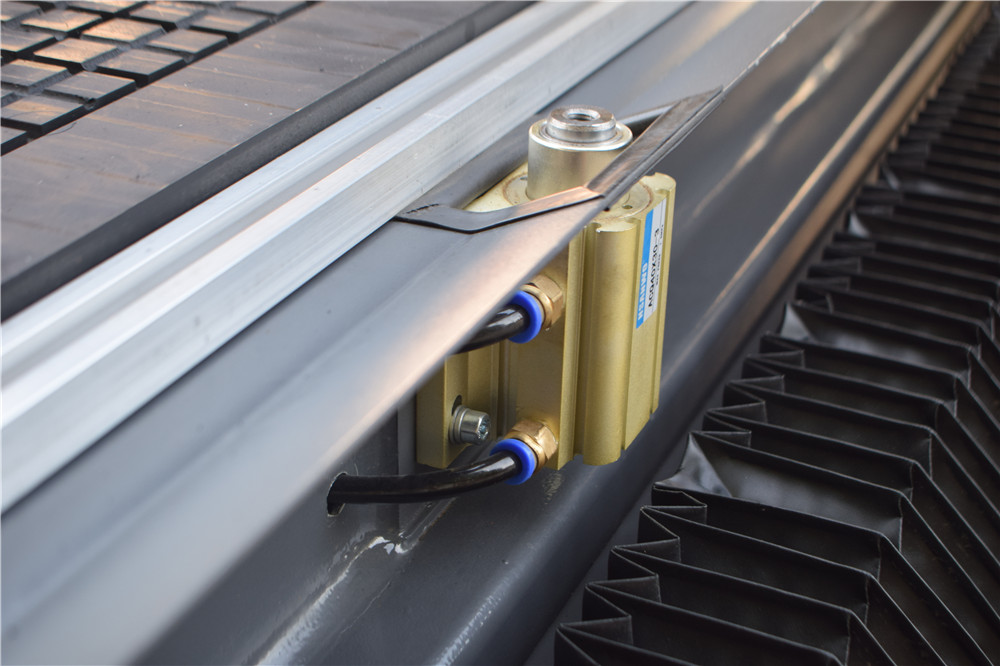

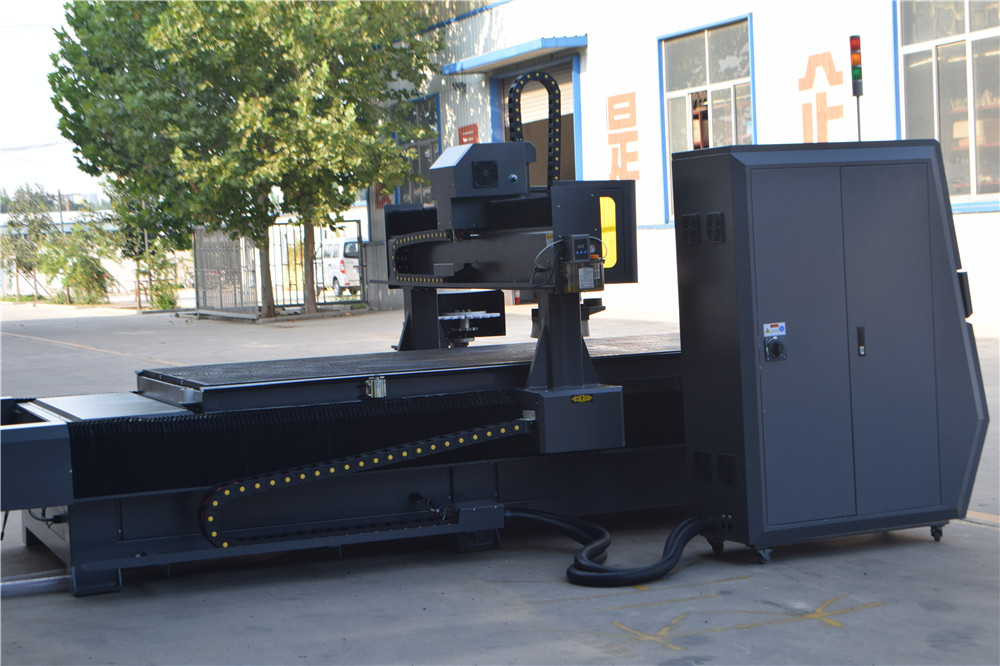

【Machine Details】
