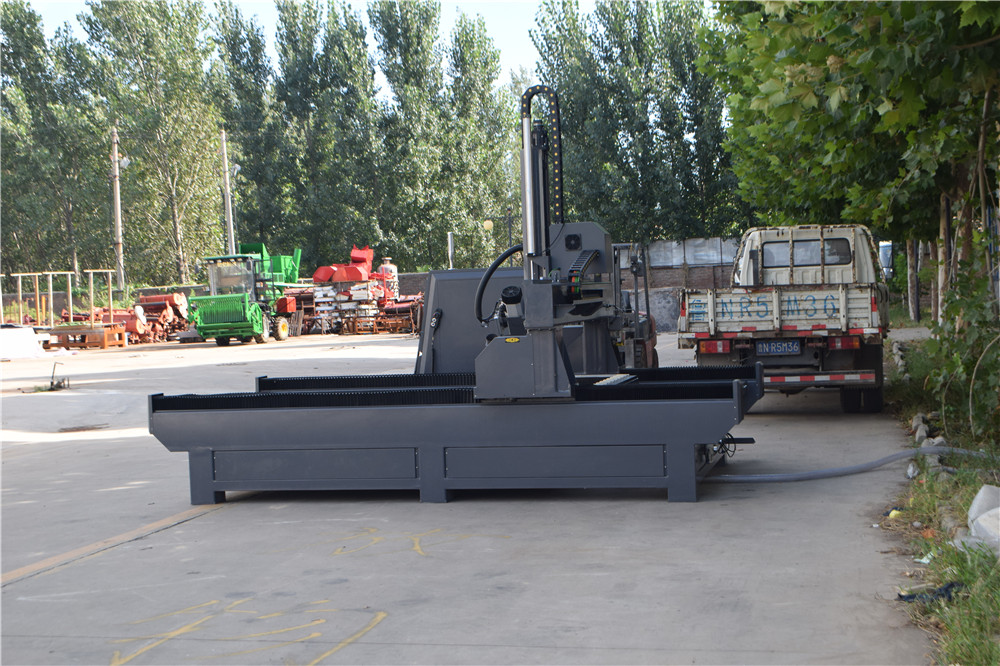

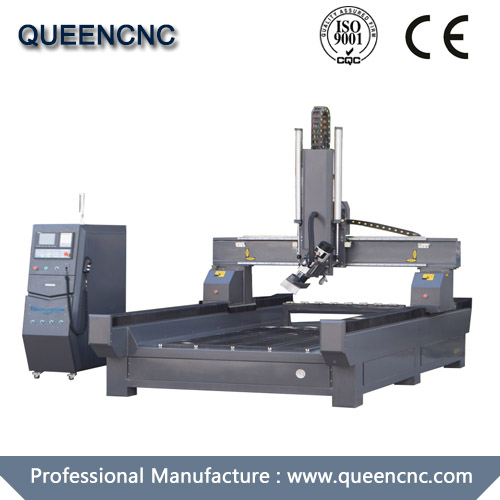

QN1530H 4 axis spindle rotating ATC cnc router

Configurations:


Model (option)  QN1530H 4 Axis atc
X,Y,Z axis working area 1500*3000*500mm
Guide rail Square guide linear rail PMI from taiwan

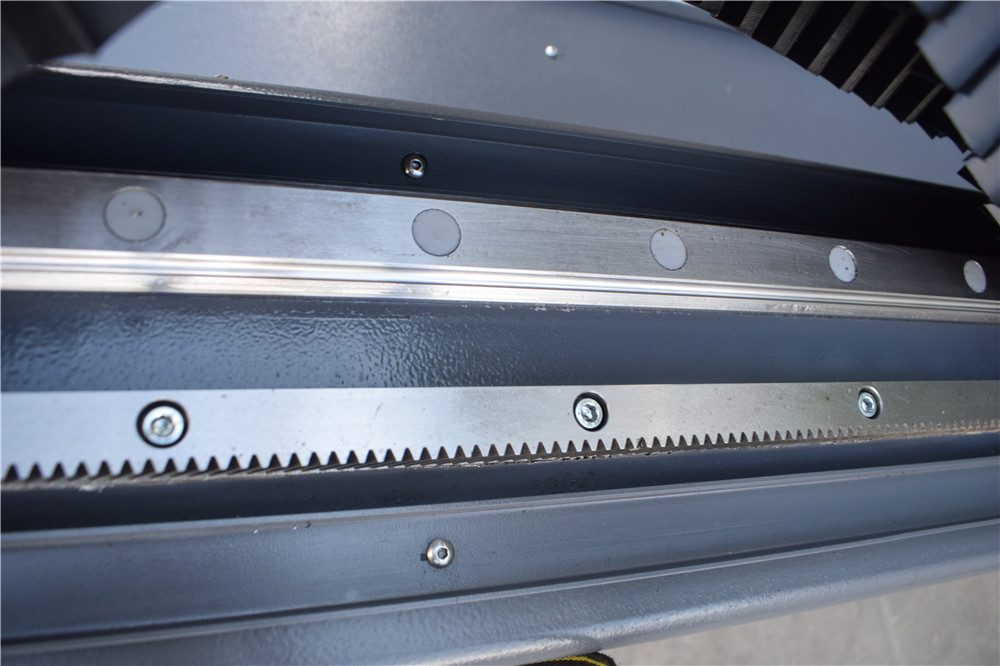

X,Y structure High-precision rack and pinion transmission
Z axis ball screw
Control system SYNTEC control
Whole structure Cast steel
Max.engraving speed 40m/min
Maxing cutting speed 25m/min
Resolution 0.01mm
Processing accuracy <0.05mm
Wood holding Vacuum absorption(by suction)
Competitive software AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill
Imagine format graphic BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF
Spindle power (you can choose) 9kw HQD spindle
Spindle rotating speed 6000-24000rmp/min
Tool magazine 8 pieces of cutters
Diameter of cutter φ3.175~φ20
Driving system Yaskawa servo system
Operate language G code,plt,mmg,uoo,bmp,F/S
Working voltage AC380V/50Hz
Running environment Temperature:0-45;Humidity:30%~70%
With Optional parts Vacuum worktable

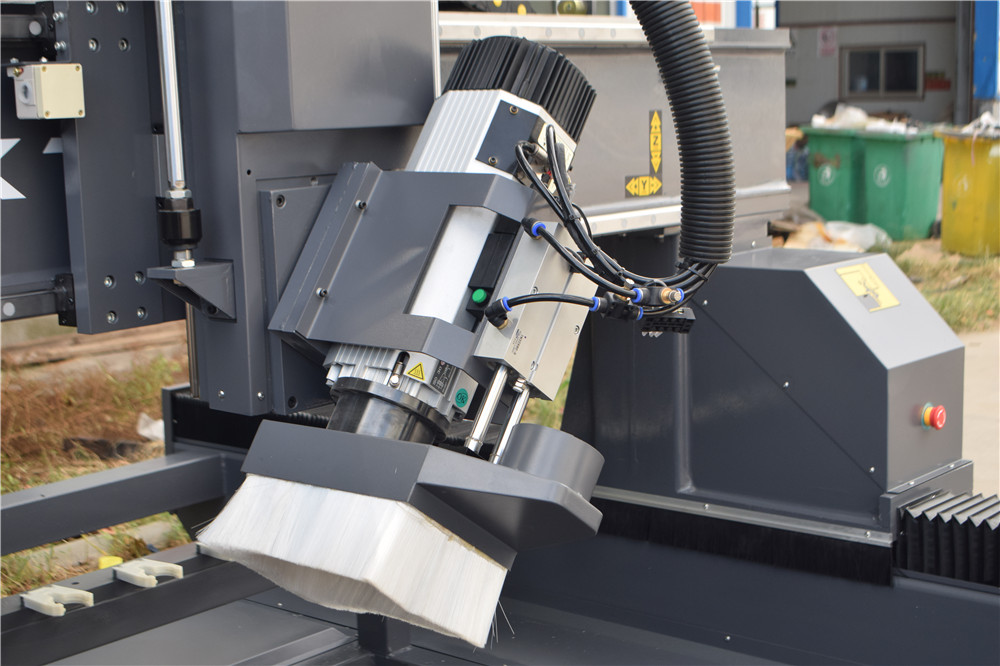

Machine parts 9kw hqd cooled spindle
Delta servo motor and driver

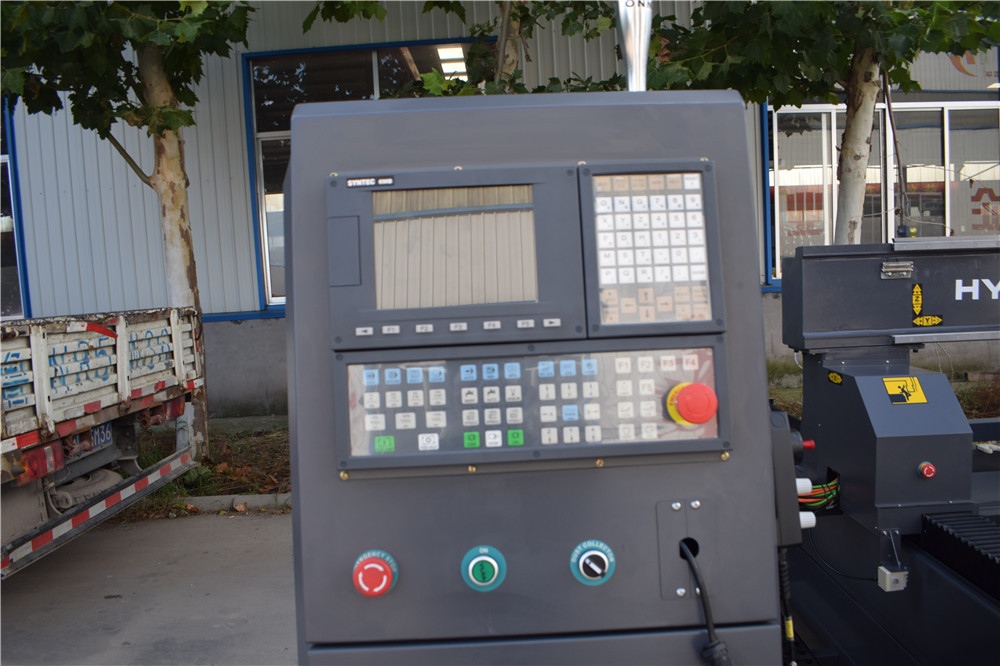

Syntec6MB control system
Taiwan squarer guide rail
inverter equipment

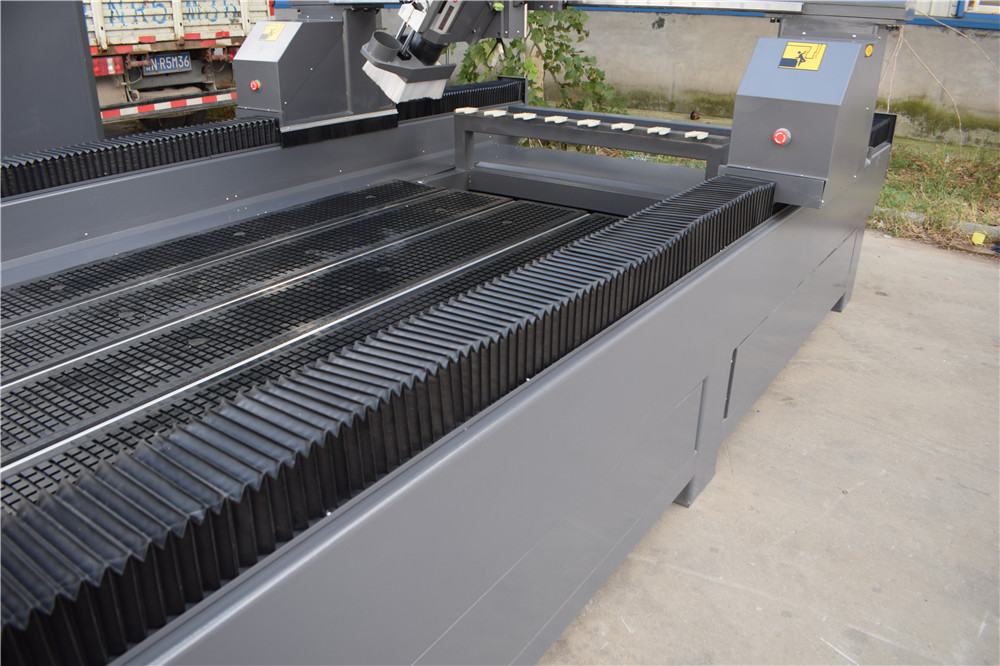

vacuum pump and vacuum worktable(7.5kw vacuum pump)
oil lubricating system
automatic tool measurement
8 tool holder and collets
control box/wrench/brush
user manual /CD video/design software
