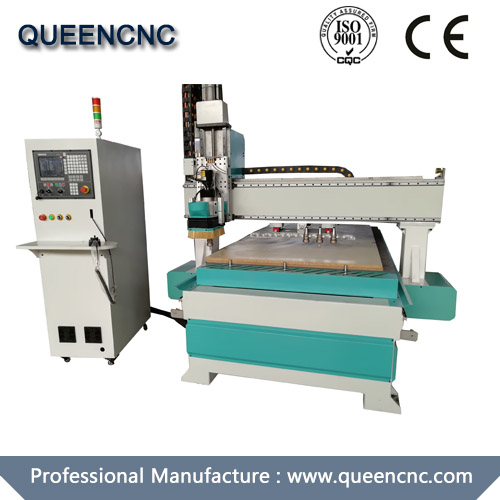

M25H Linear ATC Cnc Router With 8 Tools



M25H
【Features】
Linear style automated tool changer with 8 pieces of tools in total.
5.5KW Water Cooling Spindle, very stable and durable.
High-torque Japan Yaskawa 750W .
Vacuum table with 6 vacuum zones,which can adsorb different size materials..
Oil-injection system makes the maintenance more convenient.
Advanced NK260 control system.
THK 25 linear guide rail with high quality and hihg accuracy.
Taiwan delta inverter with high performance.

【Product Parameters】
Model
M25H Linear ATC cnc router
QN1325

Option
XYZ Working Area
1300*2500*200mm
According to customer's requirement
Table Surface
Vacuum table
Frame
Welding
XYZ Structure XYZ
XINYUE helical rack and gear,THK 25 Guide Rail
PMI Guide Rail PMI
          Z Structure
TBI Ball Screw
XYZ Traveling Positioning Accuracy
±0.02mm
XYZ Re-positioning Accuracy
±0.01mm
Drive System
Yaskawa 750w servo driver and motor
elta/Panasonic/Siemens
Max.Rapid Travel Rate
35000mm/min
Max.Working Rate
20000mm/min
Spindle
5.5KW ATC Water Cooling Spindle
Air Cooling Spindle
Spindle Speed
0-24000RPM
Control System
NK260 Control System
Syntec/NK300/Mach3
Command Language
G Code
Flash Memory
256M
Interface
USB
Working Voltage
AC220V 3PH 60HZ
AC380V 3PH 50HZ
Software Compatibility
Artcam
Type3,Ucancam
Running Environment
Temperature: 0°C~45°C  Relative humidity: 30%~75%
Packaging Size
2920*2280*1920mm
Net Weight
1600KG
Gross Weight
1800KG

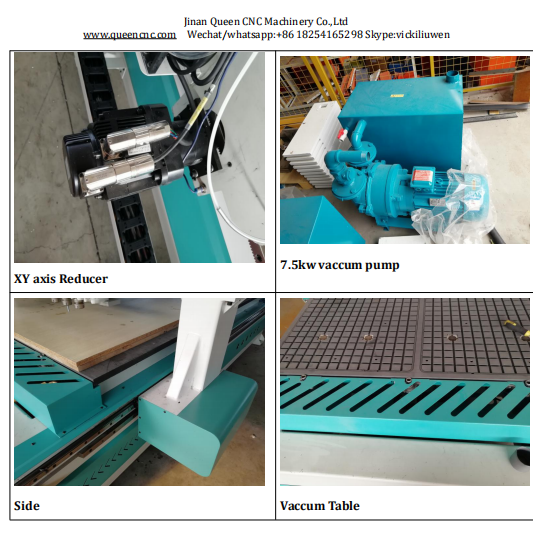

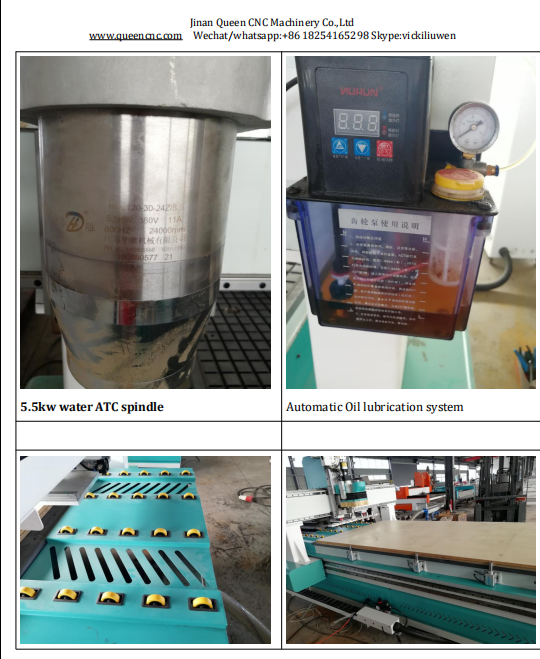

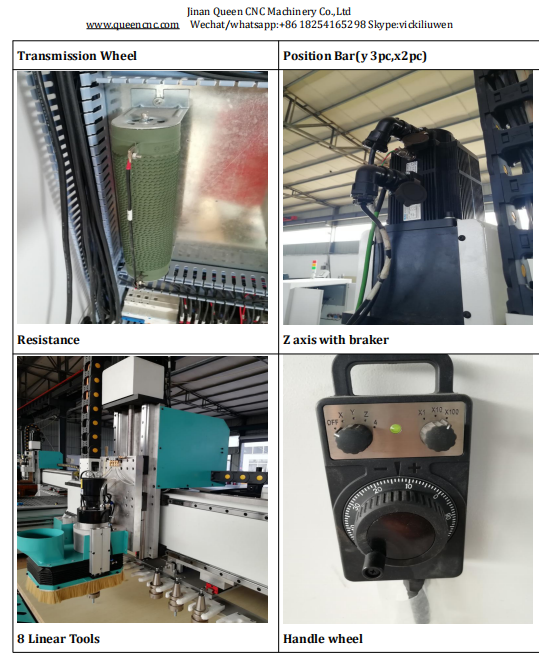

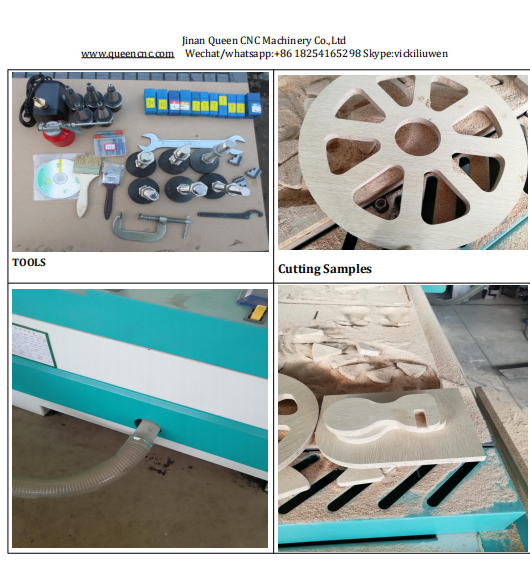

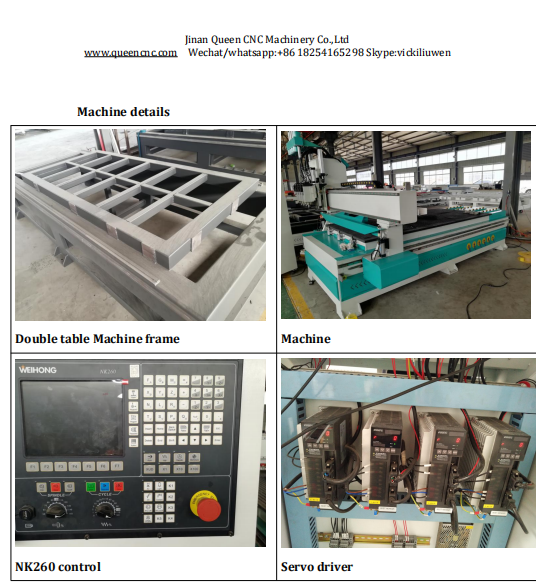

【Machine Details】

【Buy Tips】
This linear atc cnc,you can choose different working area,such as 1500*3000mm,2000*3000mm,1300*5000mm and so.And main configuration difference is:you can choose chinese atc spindle,but also can choose HSD atc spindle.And you also choose NC studio control system,also can choose syntec control system.(NK200,NK260 widely used)(syntec6MA).If your budget is low,you also can choose mach3 control.
