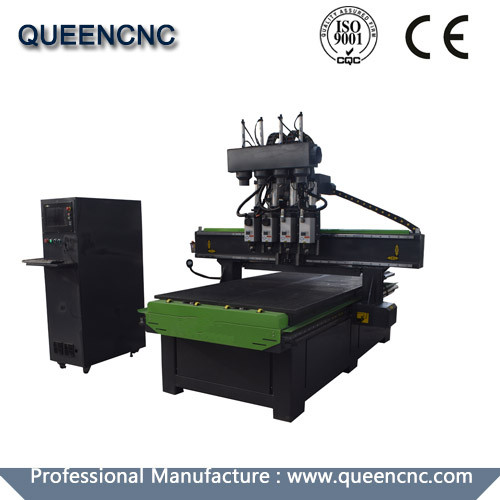

QN1325 Four Spindle Switch Cnc Router
QN1325
【Product Parameters】
|
Model |
QN1325 Four spindle switch cnc router |
|
Effective working area |
1300*2500*300mm(4’x8’x12’’) |
|
X axis length |
1300mm |
|
Y axis length |
2500mm |
|
Z axis height |
300mm |
|
Machine Body |
Heavy duty cast steel machine frame |
|
Working table |
adsorption table |
|
X and Y axis |
25mm linear square rails, high precision Helical rack and pinion drive 25mm |
|
Z axis |
25mm linear quare rails,Ball screw drive |
|
Spindle |
Three 4.5kw Air cooled spindle,ER32 collect with dust shoe |
|
Frequency converters |
Delta |
|
Driver |
Delta driver |
|
Motor |
Delta motors |
|
Control system |
NK200 control system |
|
Limit switch |
Yes |
|
Oiler system |
Auto oiling system |
|
Tool sensor |
Yes |
|
Command |
G code |
|
Voltage |
220V 50Hz/60Hz,single phase 380v 50Hz/60Hz,three phase |
