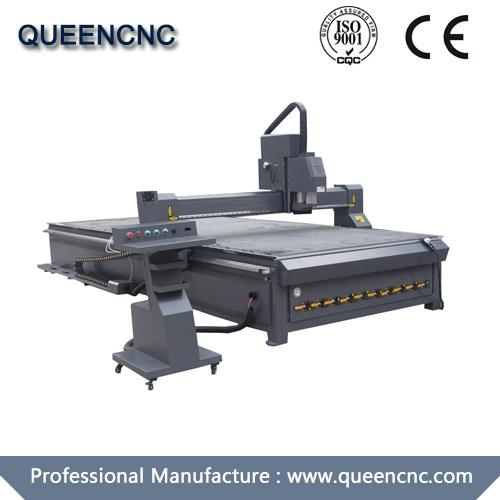

QN2040 Cnc Router

QN2040
【Product Parameters】
Model  QN2040
Effective working area  2000*4000*300mm
X axis length  2000mm
Y axis length  4000mm
Z axis height  200mm
Machine Body  Heavy duty cast steel machine frame
Working table Bar adsorption table
X and Y axis  25mm linear square rails, high precision Helical rack and pinion drive
Z axis  25mm linear quare rails,Ball screw drive
Spindle  4.5kw water cooled spindle,ER32 collect with dust shoe
Frequency converters  Delta

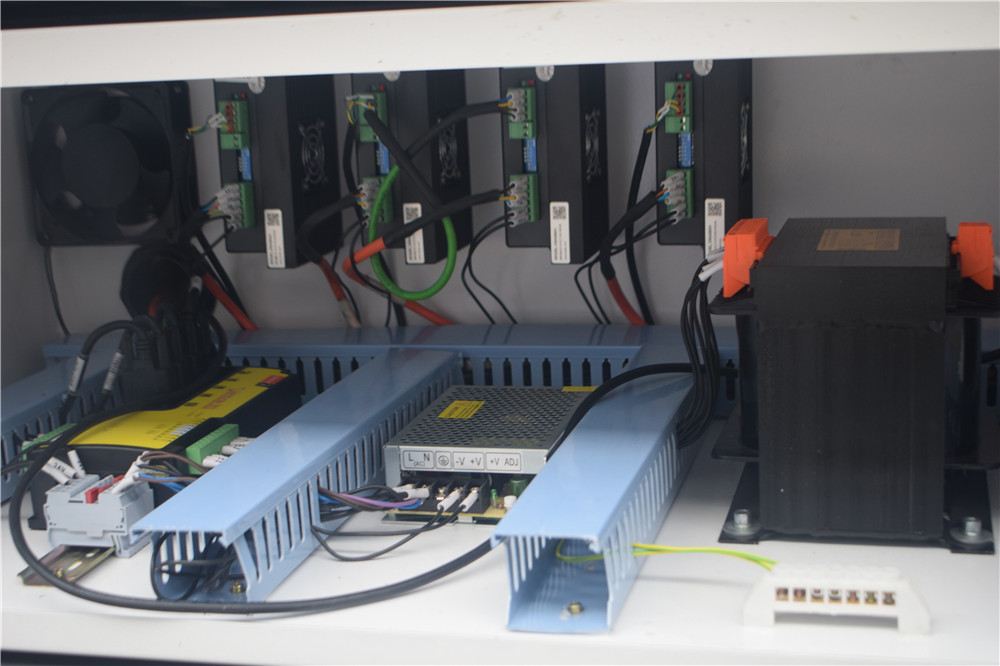

Driver  YAKO driver
Motor  YAKO motors
Control system  Mach 3 control system
Limit switch  Yes
Oiler system  Auto oiling system
Tool sensor  Yes
Command  G code
Voltage  220V 50Hz/60Hz,single phase 380v 50Hz/60Hz,three phase

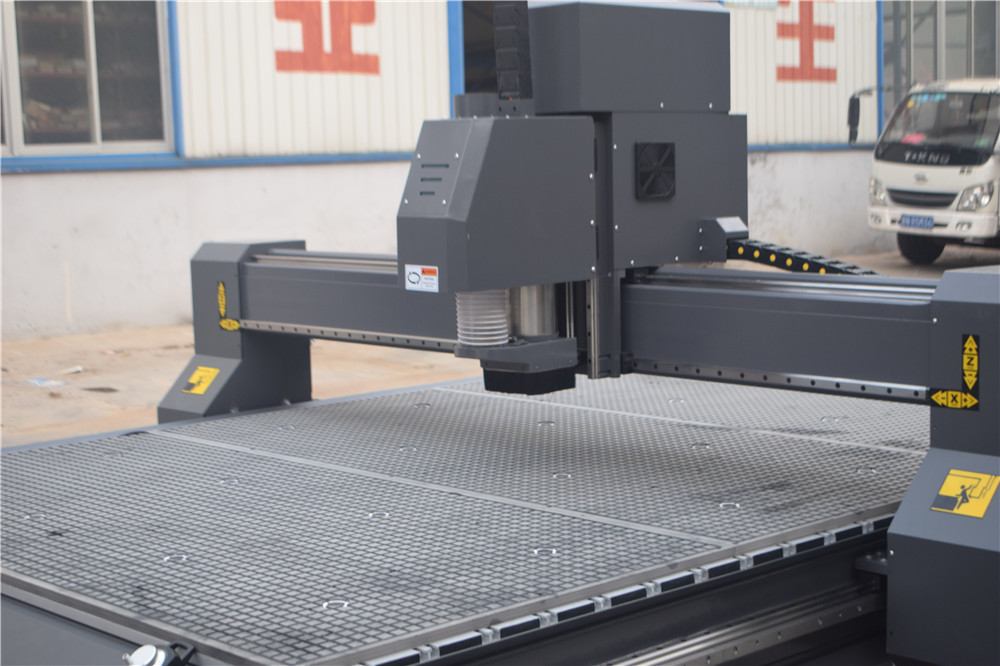

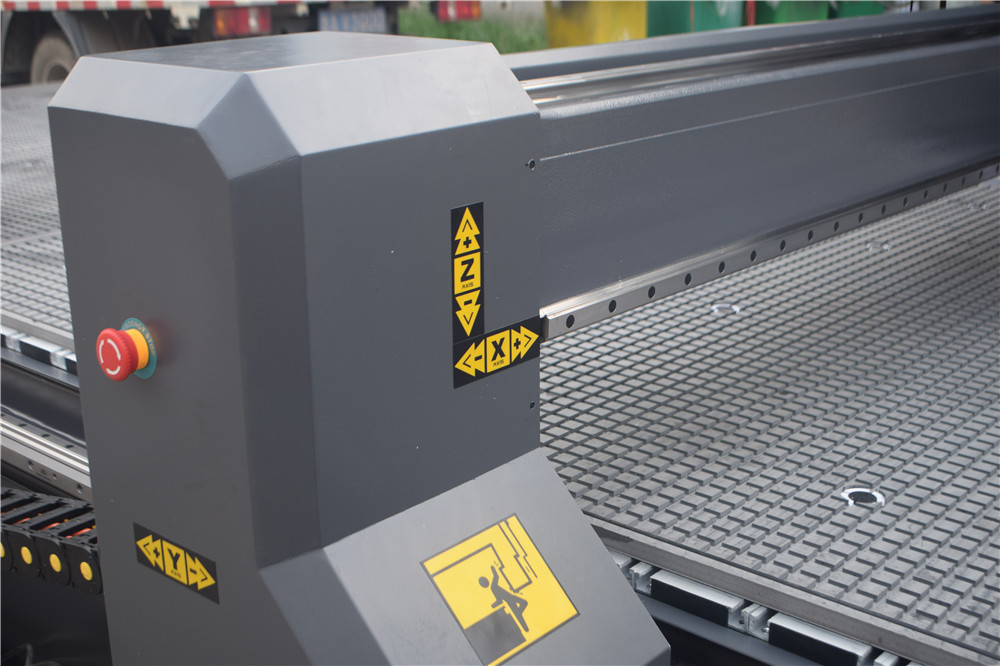

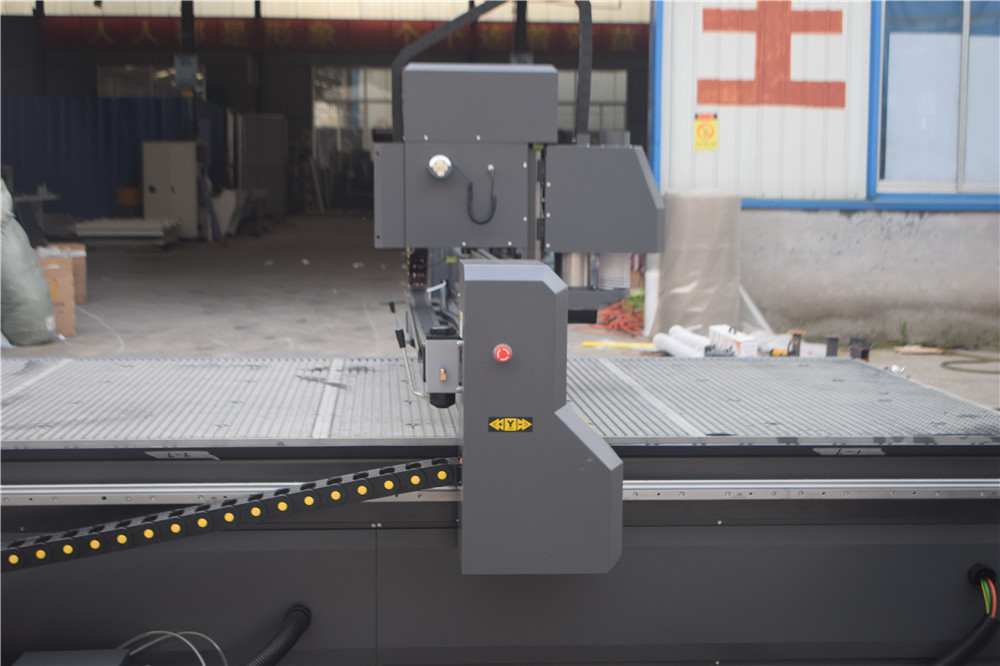

【Machine Details】
