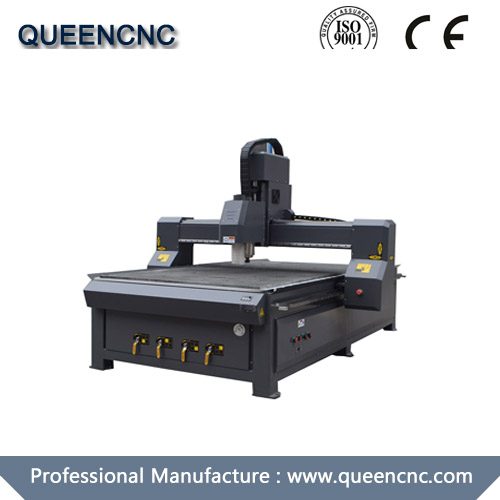

QN1325 Vacuum Table Cnc Router



QN1325
【Product Parameters】
Model  QN1325
Effective working area  1300*2500*300mm(4’x8’x12’’)
X axis length  1300mm
Y axis length  2500mm
Z axis height  300mm
Machine Body  Heavy duty cast steel machine frame
Working table Bar adsorption table
X and Y axis  25mm linear square rails, high precision Helical rack and pinion drive
Z axis  25mm linear quare rails,Ball screw drive
Spindle  4.5kw Air cooled spindle,ER32 collect with dust shoe
Frequency converters  Delta
Driver  Delta driver
Motor  Delta motors
Control system  SYNTEC control system
Limit switch  Yes
Oiler system  Auto oiling system
Tool sensor  Yes
Command  G code
Voltage  220V 50Hz/60Hz,single phase 380v 50Hz/60Hz,three phase
