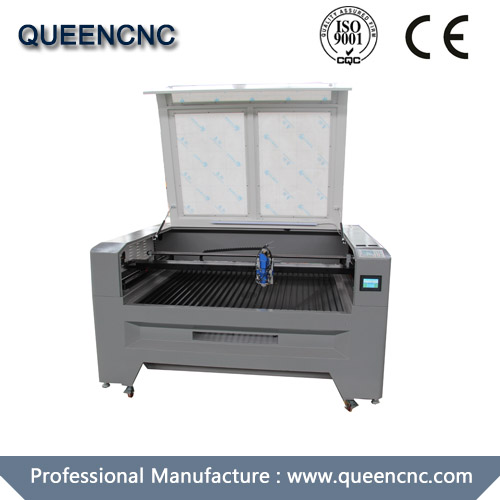

QN1390M Mixed Co2 Laser Cutting Machine For Nonmetal And Thin Metal

QN1390M
【Product Parameters】
Item  Standard config
Model Type  QN1390M
Working Area  1300*900mm
Laser power  150w/280W/300W/350W/500W sealed co2 laser tube
Laser head  Up and down
Working table  Knife blade table
Control card Ruida
Drive and motor Leadshine
Cooled down method  Water cooling and the protection system
Graphics format supported  BMP/HPGL/PLT/DST/AI
Compatible software  CorelDraw/AutoCAD/Photoshop
Guid rail  Taiwan HIWIN linear guider
Transmission  Belt
Interface  USB
Water chiller CW5000
Power source  AC220v±10%,single phase 220v
Warranty  12 month with 24 hours on-line technical support
【Features】
1.Imported stepper motor and drive systems, belt drive
2.RECI 150W/ 180W laser tube
3.Ruida control system/ Leetro control optional, auto height controller, can cut max 1.5mm metal materials, high preicison.
4.Adopted imported linear guide rail
5.Dual transmission: Industrial Serial, USB port
6.Large LCD display subtitles, humane button control panel
7.High strength stainless iron or aluminum honeycomb floor slats optional knife
8.PCI card / USB interface online / read U disk directly from the machine

【Buy tips】
This machine is not only for nonmetal materials,but also can thin metal.And the machine max cutting 2mm stainless steel and 3mm carbon steel.
