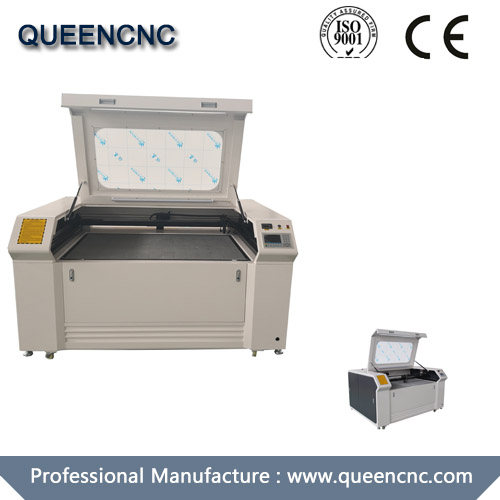

New deign QN1390 Laser Engraving And Cutting Machine

QN1390
【Applicable Materials】
1) acrylic ,Cloth, tile, cardboard, paper, leather, PU leather, logo embroidery, plastic, rubber, wood
2) leather animals, shells, double color boards, bamboo
3) ABS board, PVC board, fiber and composite materials and other non-metallic materials
4) Shoes, leather clothing, brand processing, embroidery, advertisement decoration, wood    processing
5) packaging and printing, laser knife mold, decoration decoration industry, craft,toys

【Product Parameters】
Item  Standard config
Model Type QN1390
Working Area  1300*900mm
Laser power  60w/80w/100w/130w/150w sealed co2 laser tube
Working table  Honeycomb/blade working table
Control card Ruida
Drive and motor Stepper motor and driver
Cooled down method  Water cooling and the protection system
Engraving speed 0-60000mm/min
Graphics format supported  BMP/HPGL/PLT/DST/AI
Compatible software  CorelDraw/AutoCAD/Photoshop
Guid rail  Taiwan HIWIN linear guider
Transmission  Belt
Interface  USB
Power source  AC220v±10%,single phase 220v
Warranty  12 month with 24 hours on-line technical support

【Buy Tips】
According to your different working area,other models such as 500*300mm,600*400mm,600*900mm,1500*1200mm and so on.
If your machine laser tube power is 80w,we advise to add cw3000,if more than 80w,we advise to add cw5000.
For laser machine,we advise to choose at least one extra pc of laser tube,because it is really easy broken if transport by plane.
