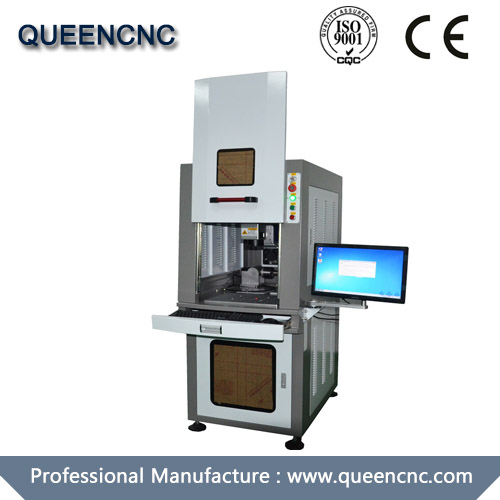

Enclosed 20w 30w 50w Fiber Laser Marking Machine
【Product Parameters】
|
Item No |
QN20/QN30/QN50 |
|
Laser Power |
20W/30W/50W |
|
Laser Wavelength |
1064nm |
|
Marking Range |
100mm×100mm/200*200mm/300*300mm |
|
Marking Speed |
≤8000mm/s |
|
Minimum Character |
0.2mm |
|
Minimum Line Width |
0.015mm |
|
Repeat Accuracy |
±0.001mm |
|
Power Stability |
<5%rms |
|
Marking depth |
0.3mm |
|
Laser Beam Quality |
M2＜1.2 |
|
Repeat Frequency |
20KHz-80KHz |
|
Cooling System |
Air cooling |
|
Operating Temperature |
15-35℃ |
|
Power Supply |
220V/50Hz |
|
Supporting format |
BMP, GIF, JPG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF etc. |
|
Machine dimension |
650mm X 900mm X 1500mm |
【Applicable Materials】
All metals (including rare metals), engineering plastics, electroplate coating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics and so on.
【Buy Tips】
This fiber marking machine is widely used because is high speed,of course you can choose different fiber laser power and working area,also can add rotary,2d working table,3d working table or flat pen rotating table for it.
