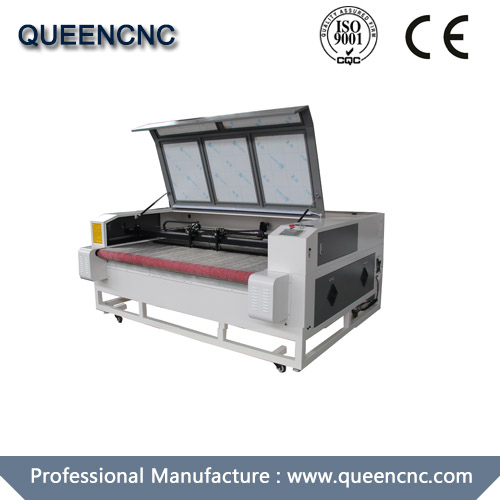

QN1610 Auto Feeding Laser Cutting Machine



QN1610
【Product Parameters】
Machine Model  QN1610 laser cutting machine QN1610
Working Size  1600*1000mm (L*W)
Laser Power  80W / 100W/130W/150W
Laser Type CO2 sealed high quality, water-cooling
Driving System  Three phase Stepping motor
Cutting Speed  0-40000mm/min / 0-1575in/min
Engraving Speed 0-70000mm/min / 0-2756in/min
Resetting Position Accuracy  ≤±0.01
Power Supply  220V/50Hz ( Optional 110V/60Hz)
Operating Temperature  0-45ºC
Operating Humidity  5-95%
Working table
Min. Shaping Character  English 1.0*1.0mm
Operating System  PCI OR USB
Graphic Format Supported  BMP, PLT, AI, DST, DXF
Software Supported  CorelDraw, Photoshop, AutoCAD, Tajima
Optional parts  Air compressor, CCD camera 气泵,CCD
Net Weight 900kg

【Features】
1, The rolls of the machine are able to roll up the large material automatically. Improve the working efficiency greatly.
2、Adopt Hiwin inner guide rails, ensuring the laser head is moving smoothly, fast and stable.Small cutting kerf, high cutting speed and accuracy guarantee the equipment’s precision and lifetime.
3,DSP control system and moderate using environment.
4, Some parts are imported and more durable like the mirrors and lens, rails, motors, etc.
5,Scientific ventilation equipments, high power exhaust fan and strong honeycomb worktable. play a vacuum adsorption, which can make the soft material very flat.
