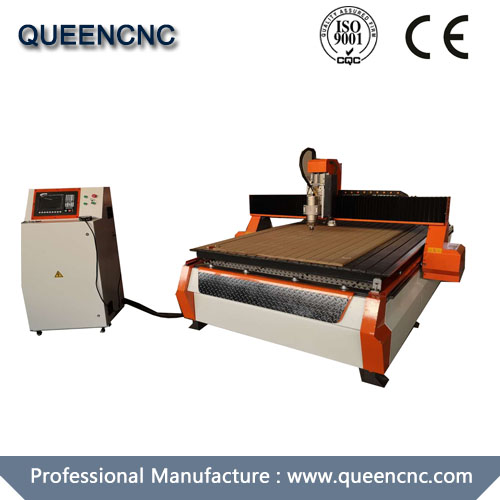

| Model(option) | QN1530G |
| Working area | 1500*3000 |
| Z axis (option) | 150mm |
| Cutting thickness | 0.3-10mm |
| Structure | Cast steel structure |
| Control system | start control system |
| Guide rail | TaiWan Square rails |
| Cutting speed | 0-9500mm/min |
| Cutting precision | <=0.01mm |
| Drive motor | stepper motor |
| Cutting mode | Plasma |
| Driving motor | stepper |
| Working current | 100A plasma power supply |
| Spindle power | 4.5kw air cooled spindle |
| Input voltage | 3 phase 380V or 220V |
| Power frequency | 50Hz/60HZ |
| Command code | G Code*、U00*、mmg*、nc |
| Interface | USB |
| Working temperature | —10ºC-45℃ |
| Application | steel, iron, aluminum, mild steel, and other metal steel. |
| Standard parts |
100A power supply 4.5kw air cooled spindle Gantry cast steel structure stepper motor and driver start control system Taiwan square guide rail water cooling and protection system water pump Plasma Torch Station,Plasma Torch,Plasma Torch Anti-Collision lasma Arc Voltage Height Adjusting CD video,user manual,design software,soft dog |
