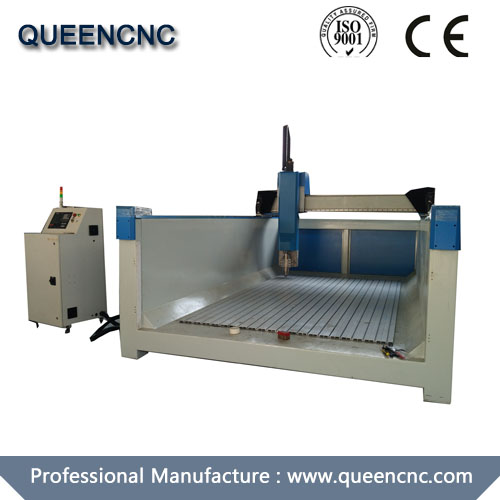

Economic Foam Molding CNC Router
|
Lathe body |
Thick and Hard Steel structure |
|
X Y effective working area |
2000*6000*1000mm |
|
Precision Machining |
0.1mm |
|
Max Traverse Speed |
30000mm/min |
|
Max processing speed |
20000mm/min |
|
Resolution |
0.01—0.03 mm |
|
Spindle power rate |
7.5kw ATC Water cooling spindle |
|
Inverter |
Delta |
|
X,Y structure |
Rack and pinion transmission, Taiwan-made Linear Bigger orbit |
|
Z structure |
TBI ball screw |
|
Motor of X , Y ,Z axis |
Yaskawa 850w Servo Motor |
|
Guide Rail |
TAIWAN 30 Square Rails |
|
Small Electronic parts |
Schneider |
|
Spindle rotating speed |
0-24000r/min |
|
Standard Power |
AC380V-/220V-Three Phase (Optional) |
|
Max. idling speed |
30000mm/min |
|
Cooling mode |
Water-cooling |
|
Command |
G code,HPGL,U00,mmg,plt |
|
Dust-collect function |
Yes |
|
Clamping mode |
By Slots |
|
Operating system |
Syntec6MA system |
