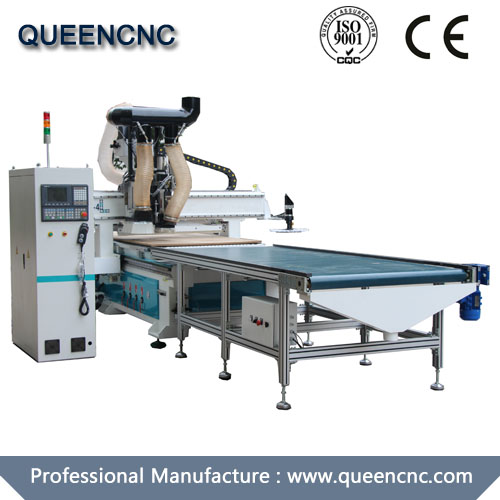

QN1325 Nesting ATC CNC WITH Drilling Head
|
Model |

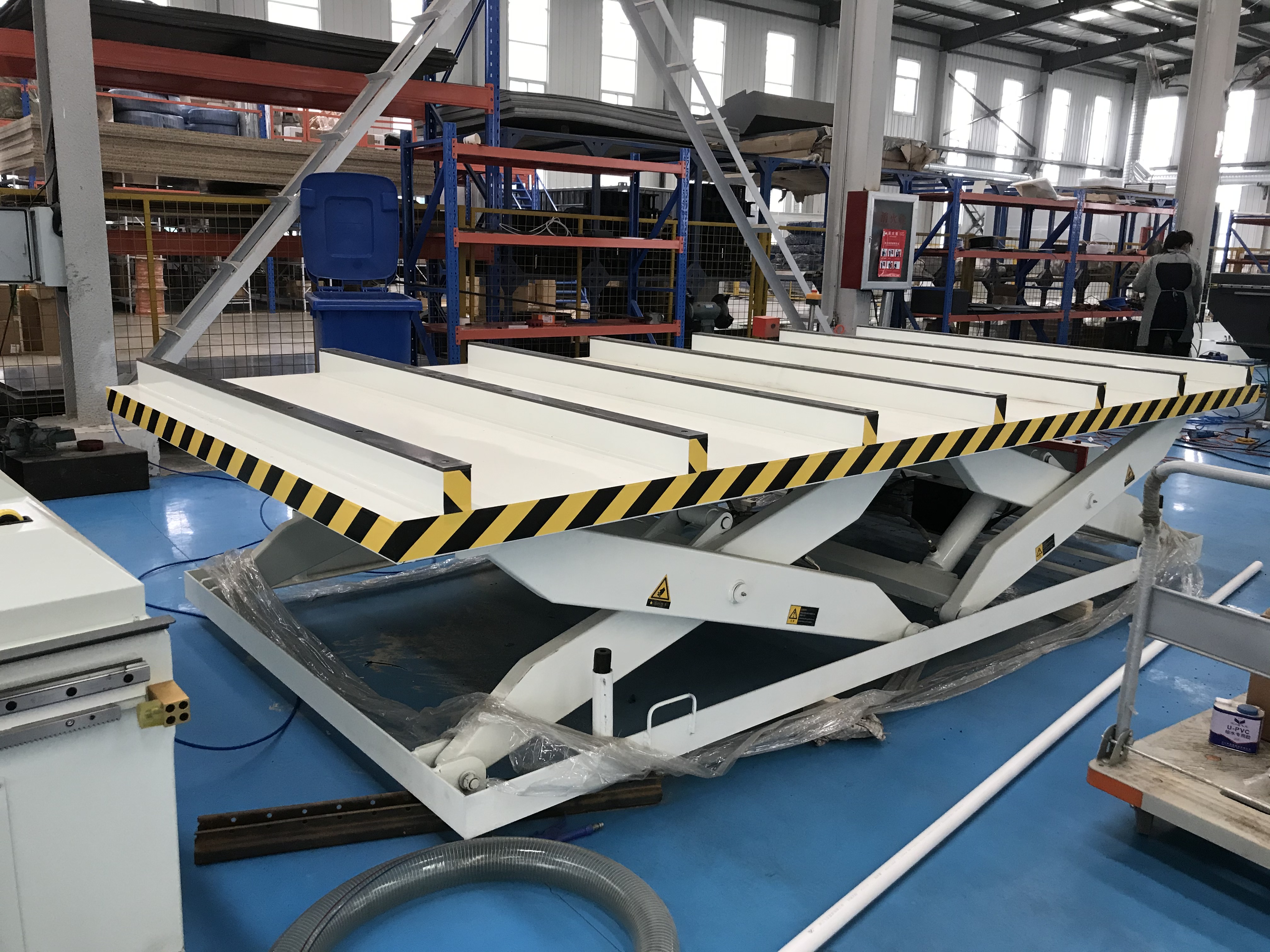

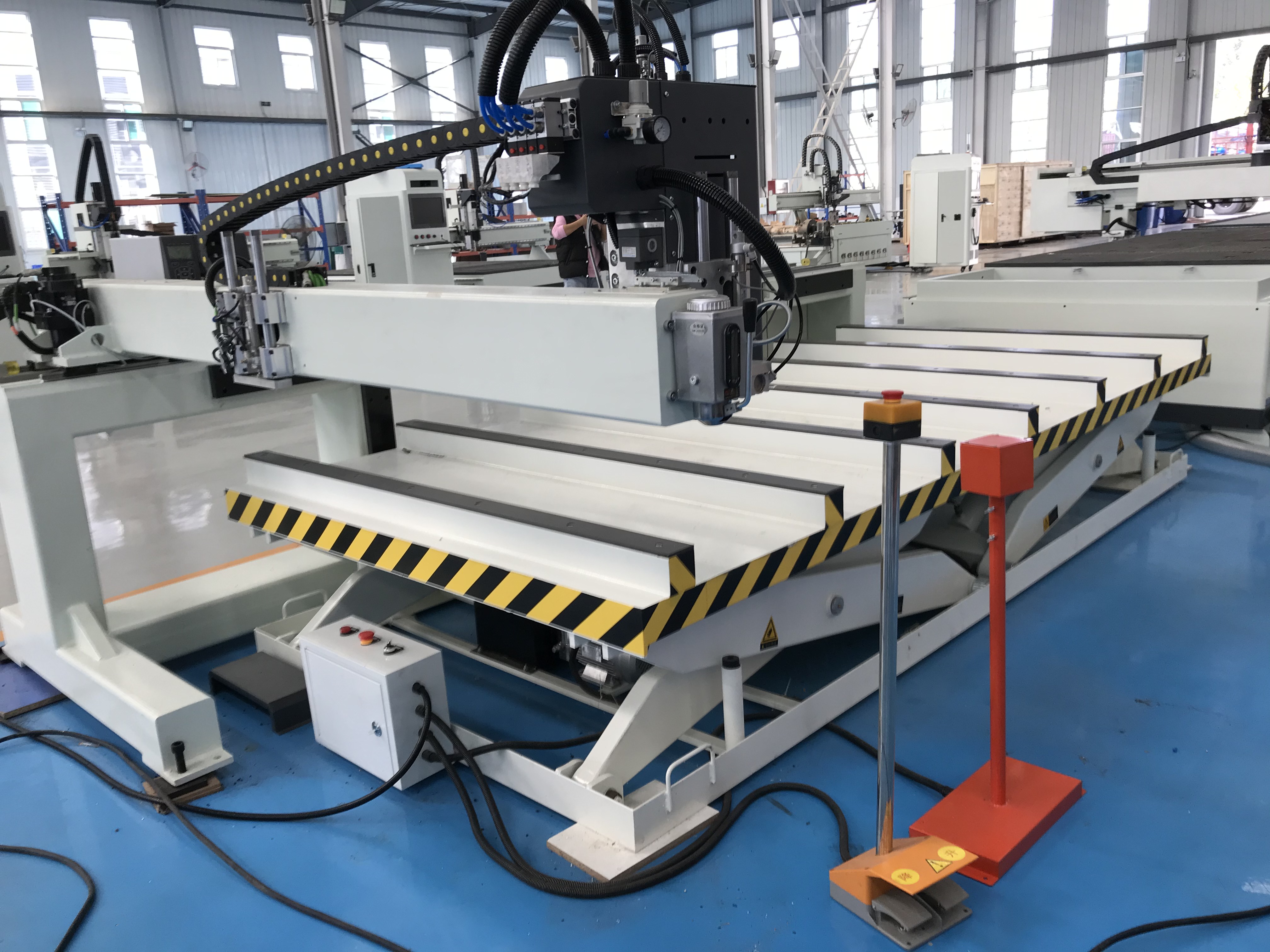

QN1325 auto loading and unloading cnc router |
|
Working size |
1300*2500*300mm |
|
Spindle |
9kw HQD air cooled spindle |
|

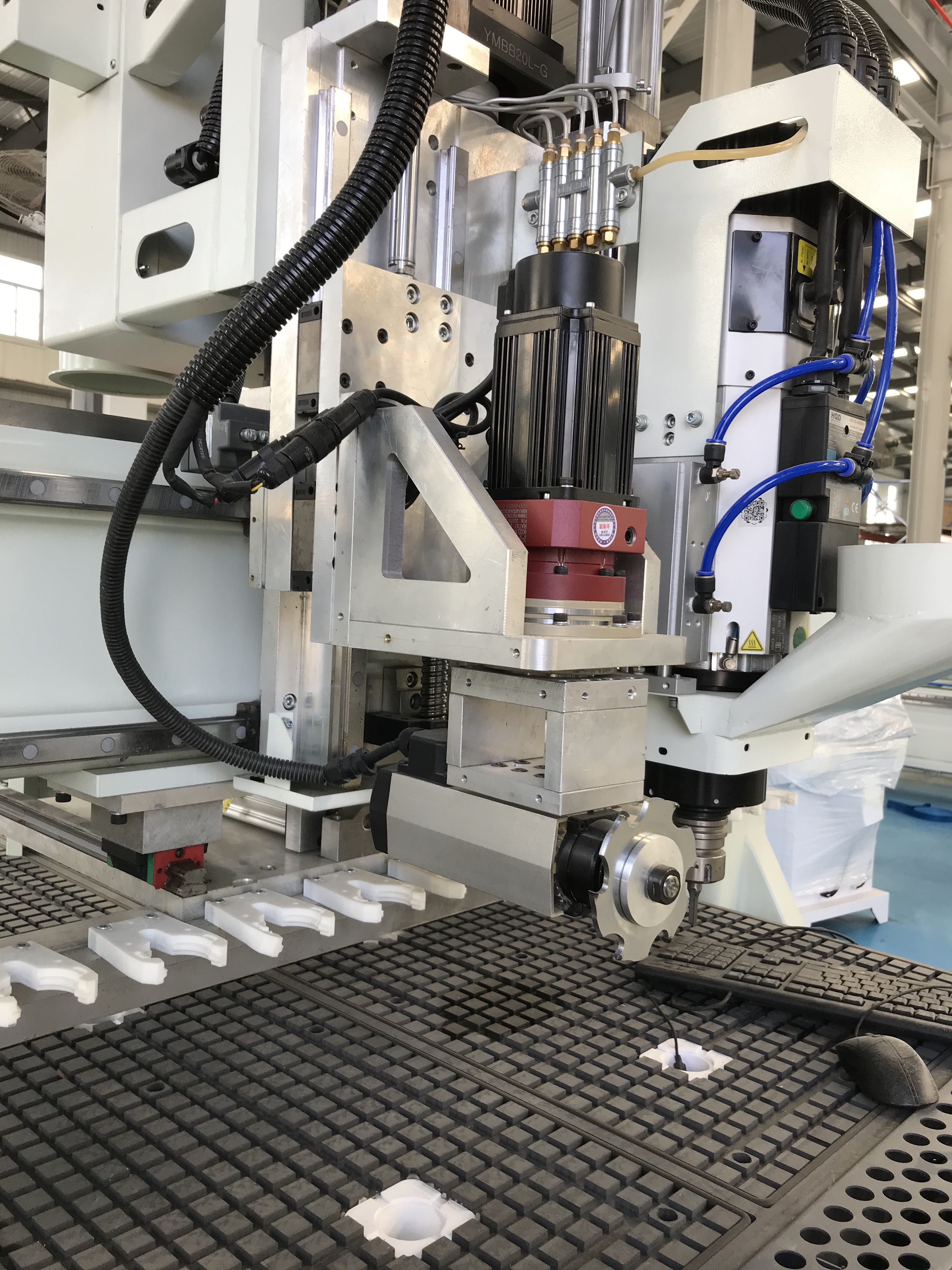

Drills |
6+3 drills |
|
Driver motor |
Delta 1kw servo motor |
|
Inverter |
Delta inverter 15kw |
|
Control system |
Taiwan Syntec control system |
|
Linear rails |
25mm Taiwan linear square rails |
|
Z axis transmission |
TBI ball screw transmission |
|
Transmission |
Rack and pinion |
|
Oiling system |
Auto oiling |
|
7.5kw oil-less vacuum pump |
Yes,one set |
|
Dust collector |
Yes,7.5kw |
|
Voltage |
415V,50/60 HZ,three phase |
|
Max cutting speed |
20m/min |
|
Max engraving speed |
35m/min |
|
Machine table |
Vacuum table and T-lot combined |
|
Machine frame |
Thicken heavy duty ,T design |
|
Net weight |
2100KG |
|
Gross weight |
2300KG |
