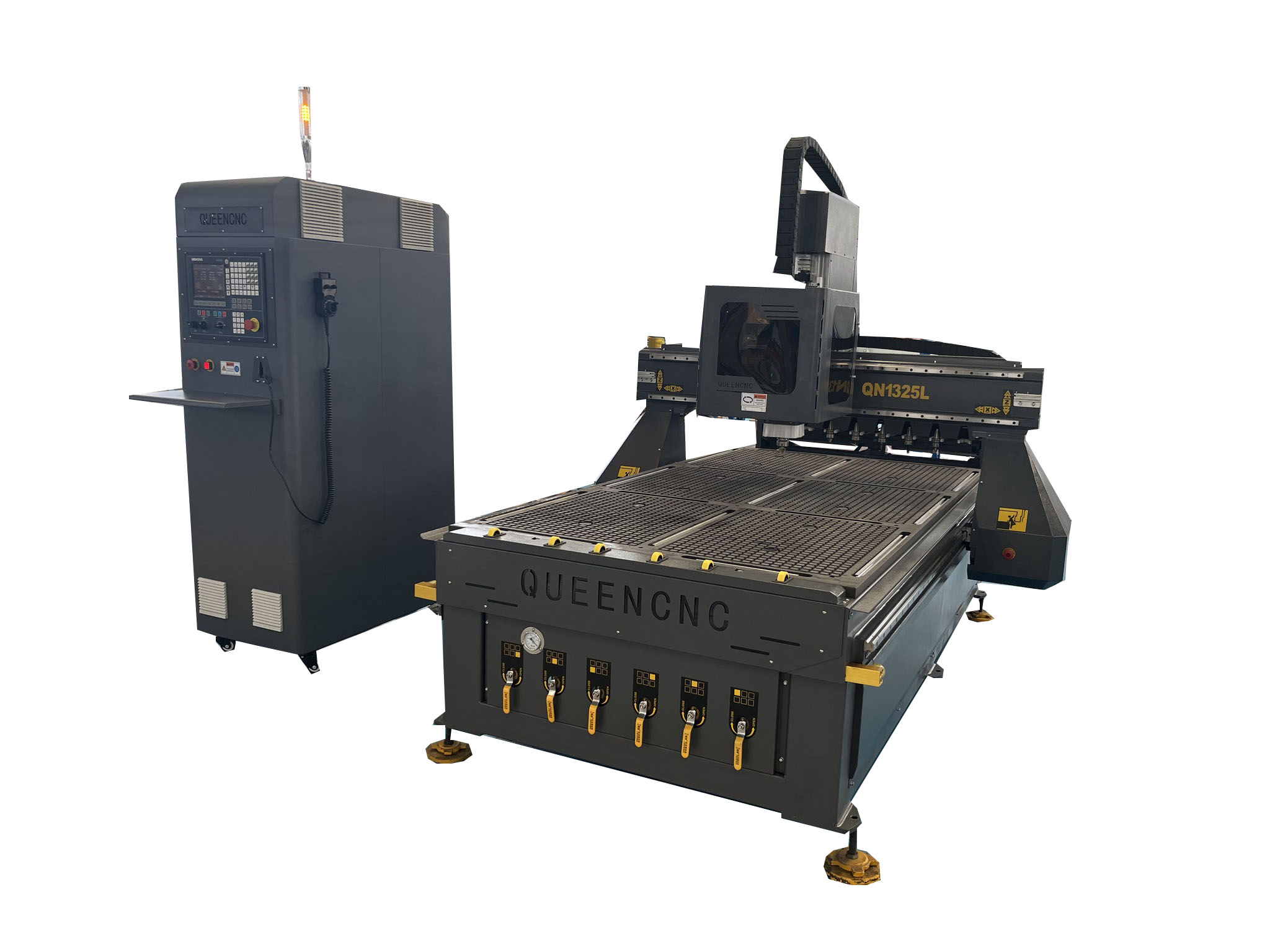

| Model (option) | QN1325L |
| X，Y，Z axis working area | 1300*2500*300mm |
| Guide rail | Square guide linear rail |
| X,Y structure | High-precision rack and pinion transmission |
| Z axis | ball screw |
| Control system | Syntec control system |
| Whole structure | Cast steel |
| Max Working speed | 70m/min |
| Maxing cutting speed | 20m/min |
| Resolution | 0.01mm |
| Processing accuracy | <0.05mm |
| Wood holding | Vacuum absorption(by suction) |
| Competitive software | AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill |
| Imagine format graphic | BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF, |
| Spindle power | 9KW ATC air cooling spindle |
| Spindle rotating speed | 6000-24000rmp/min |

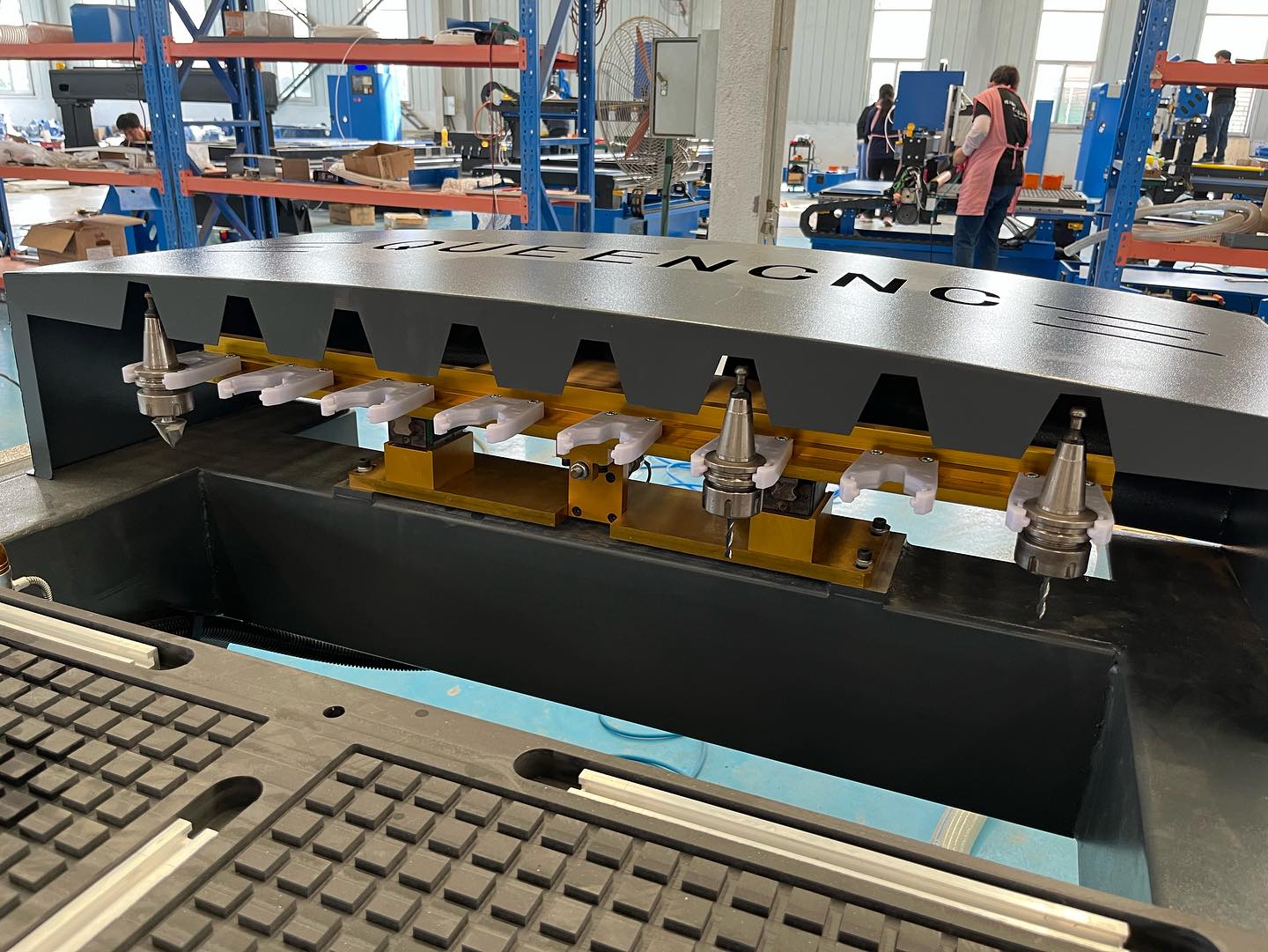

| Tool magazine | Linear ATC system ,whit 8 pieces of cutters |
| Diameter of cutter | φ3.175~φ25 |
| Driving system | Leadshine servo system |
| Operate language | G code,plt,mmg,uoo,bmp,F/S |
| Working voltage | 1 Phase 240V |
| Running environment | Temperature:0-45;Humidity:30%~70% |
| With Optional parts | Vacuum worktable |
| Machine parts |
9KW Air cooled ATC spindle Leadshine servo motor and driver NK105 control system Taiwan25 squarer guide rail inverter equipment 7.5KW vacuum pump and vacuum worktable Automatic oil lubricating system automatic tool measurement 8 tool holder and collets control box/wrench/brush user manual /CD video/design software |
