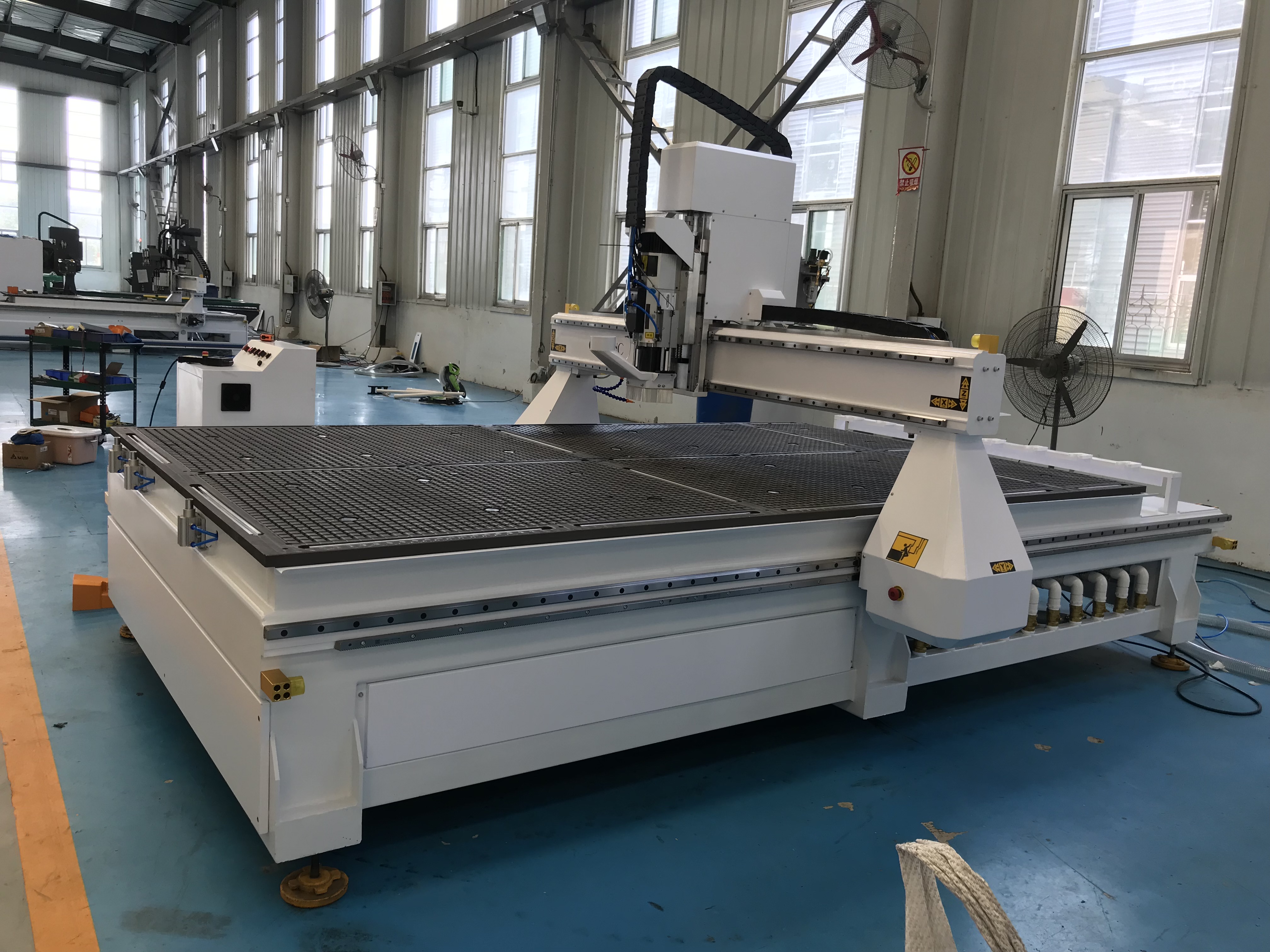

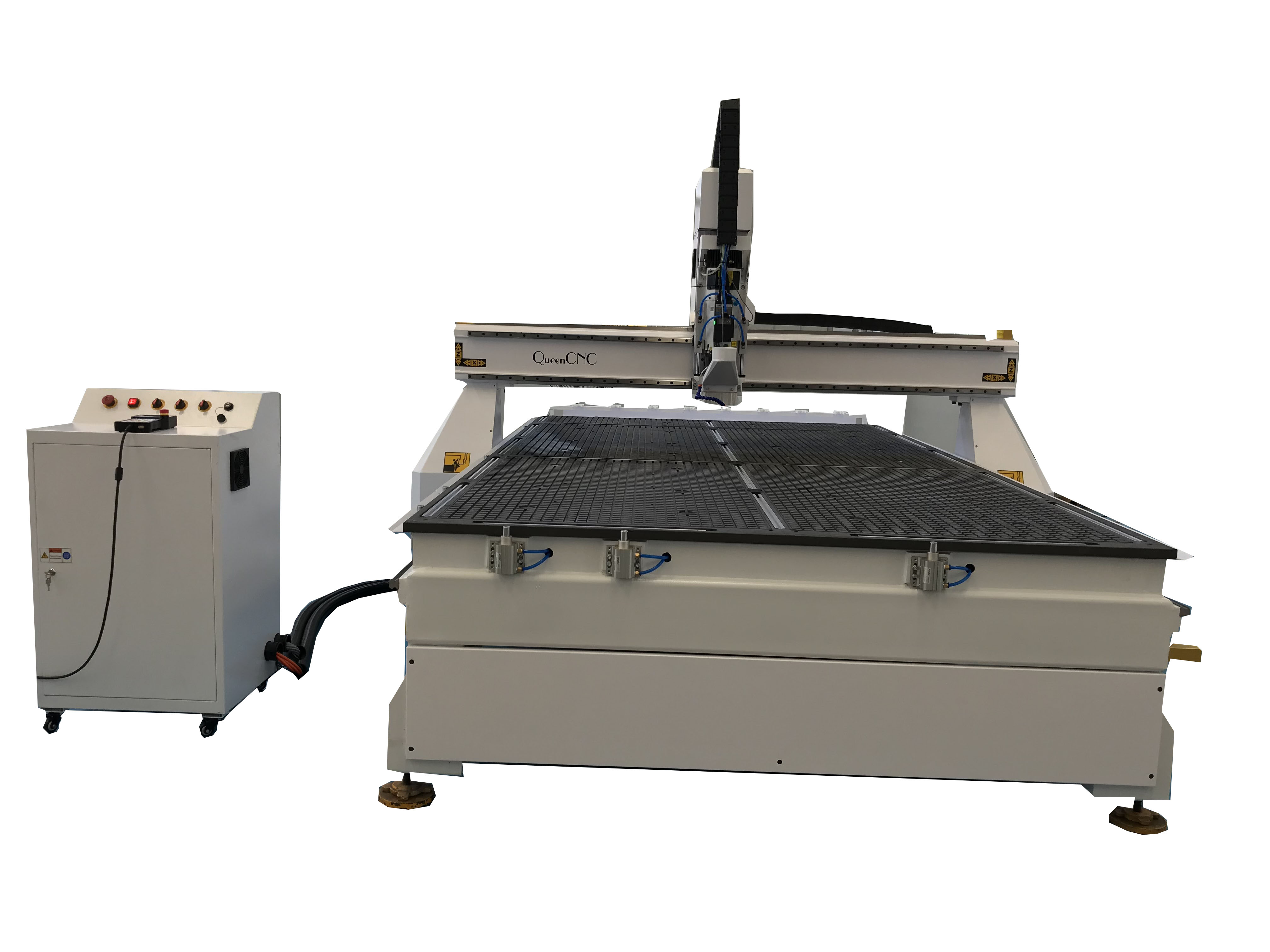

| Model (option) | QN2030H LINEAR ATC |
| X，Y，Z axis working area | 2000*3000*200mm |
| Guide rail | Taiwan Square guide linear rail 25 |
| X,Y structure | High-precision Helical rack and pinion transmission |
| Z axis | ball screw |

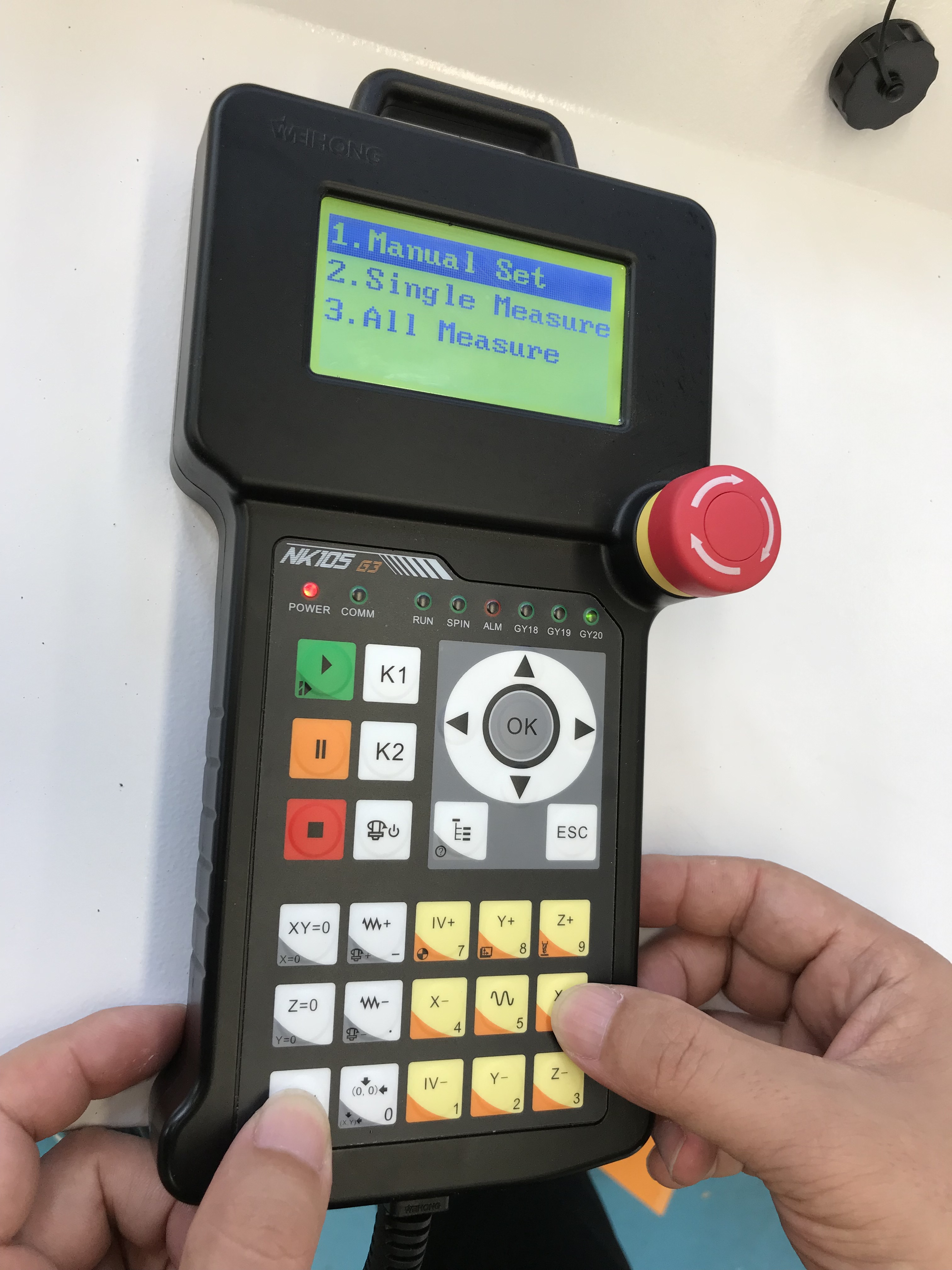

| Control system | NK105 control system |
| Whole structure | Welded steel |
| Max working speed | 35m/min |
| Resolution | 0.01mm |
| Processing accuracy | <0.05mm |
| Wood holding | Vacuum absorption(with 2 sets of 5.5kw water vacuum pump) |
| Vacuum Switches | Four |
| Competitive software | AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill |
| Imagine format graphic | BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF, |
| Spindle power | 9KW ATC air cooling spindle |
| Spindle rotating speed | 6000-24000rmp/min |
| Tool magazine | Linear ATC system with 10 pcs |
| Diameter of cutter | φ3.175~φ25 |
| Driving system | Leadshine servo system |
| Inverter system | Fuling 11kw |
| Operate language | G code,plt,mmg,uoo,bmp,F/S |
| Working voltage | AC380V/50Hz or 220V |
| Running environment | Temperature:0-45;Humidity:30%~70% |
| Dust collector | With |
| Automatic tool sensor | With |
| Automatic oil lubrication system | With |

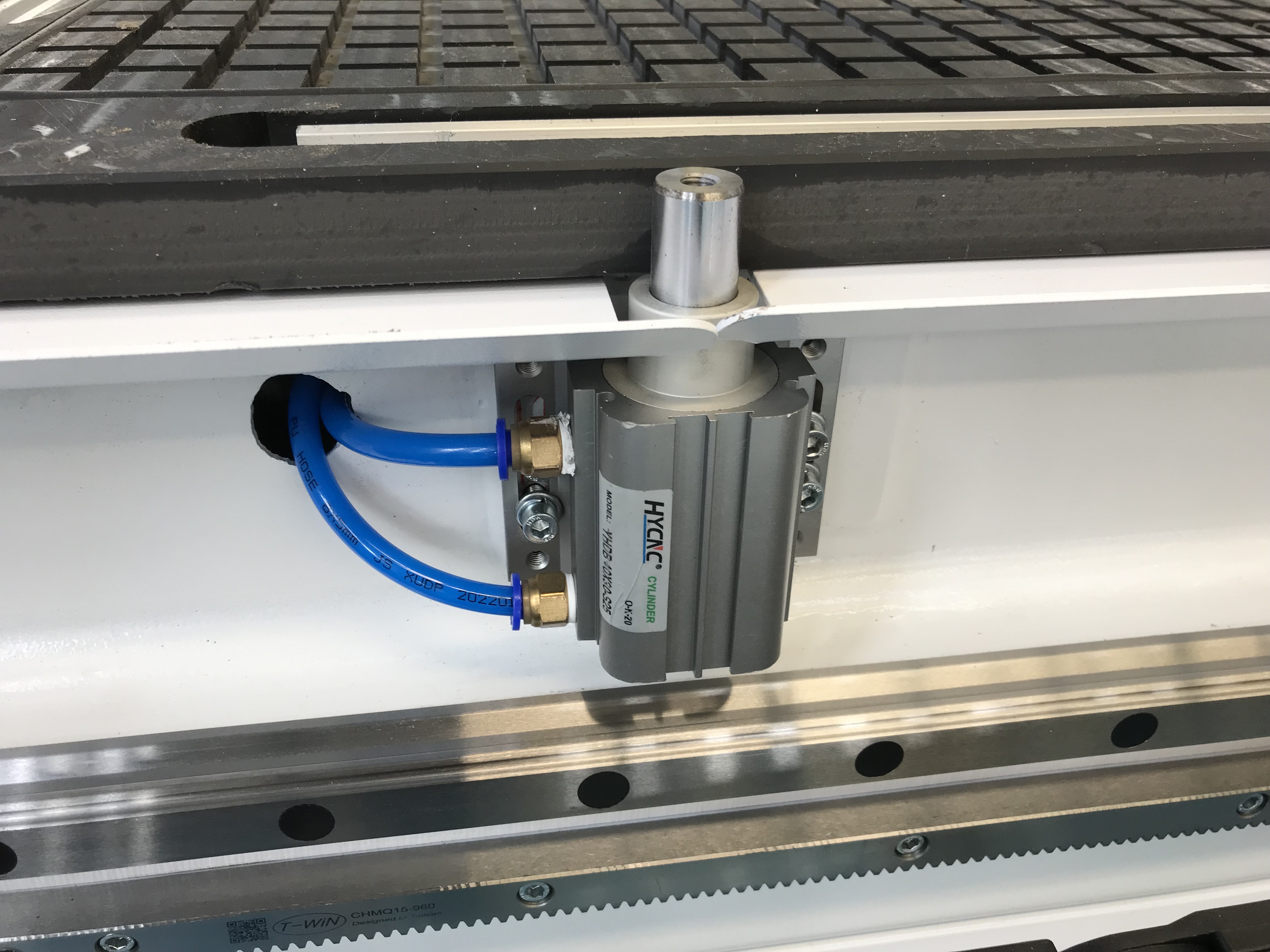

| Position cylinder bar | X 2 PCS,Y 3PCS |
| Reducer | With |
| MPG | With |
| ISO30 TOOL HOLDERS | 10PCS |
| COLLECTS | 10PCS |
| ROUTER BITS | ONE BOX(5PCS) |

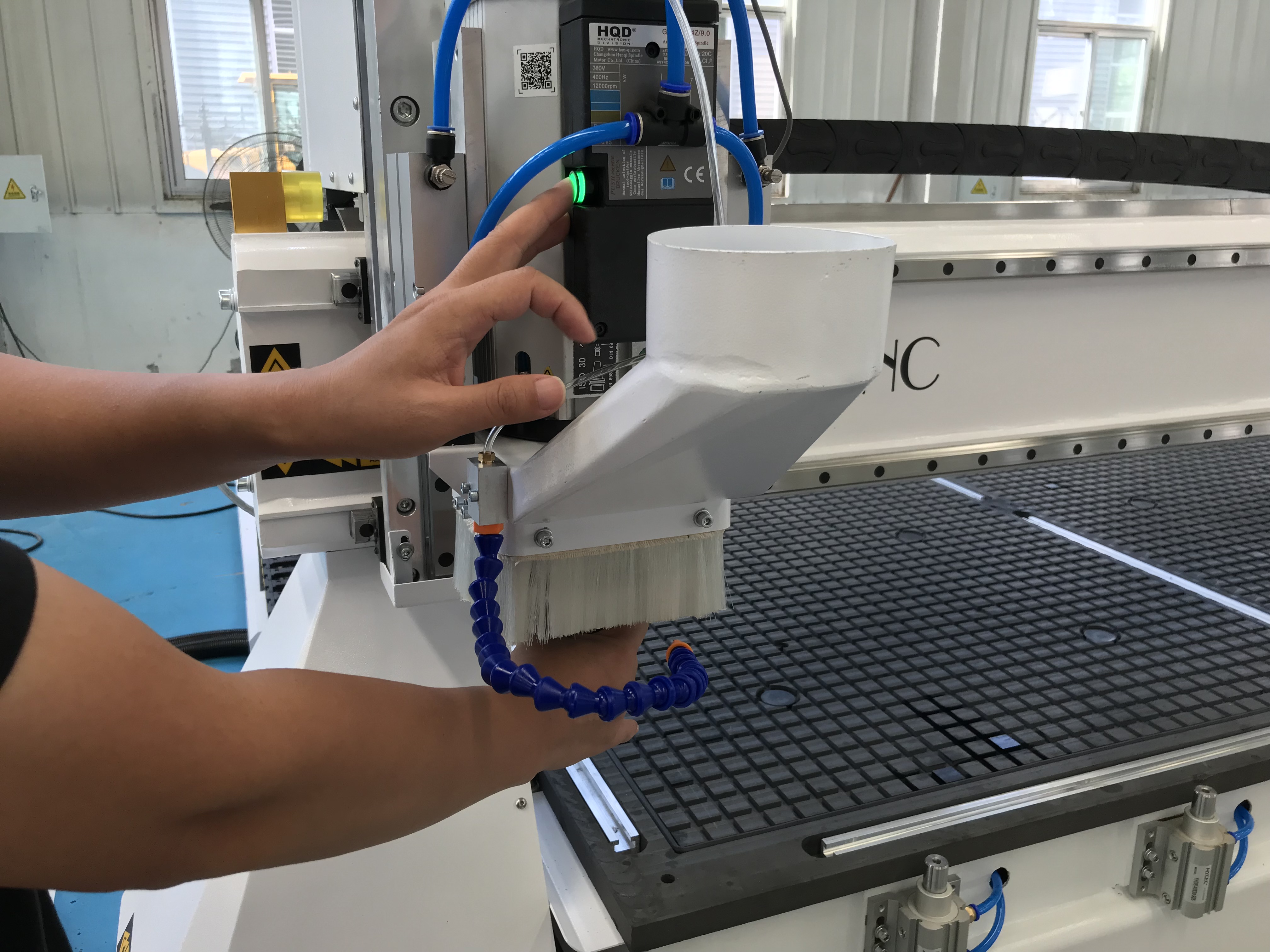

| Dust collector hood/pipe/support | With |
| Other standard parts | Clamps,wreches and so on. |
