| Description & Specifications: | |
| X Working Area | 1500mm |
| Y Working Area | 3700mm |
| Z Working Area | 200mm |
| Traveling Positioning Accuracy | ±0.05mm |
| Repositioning Positioning Accuracy | ±0.02mm |

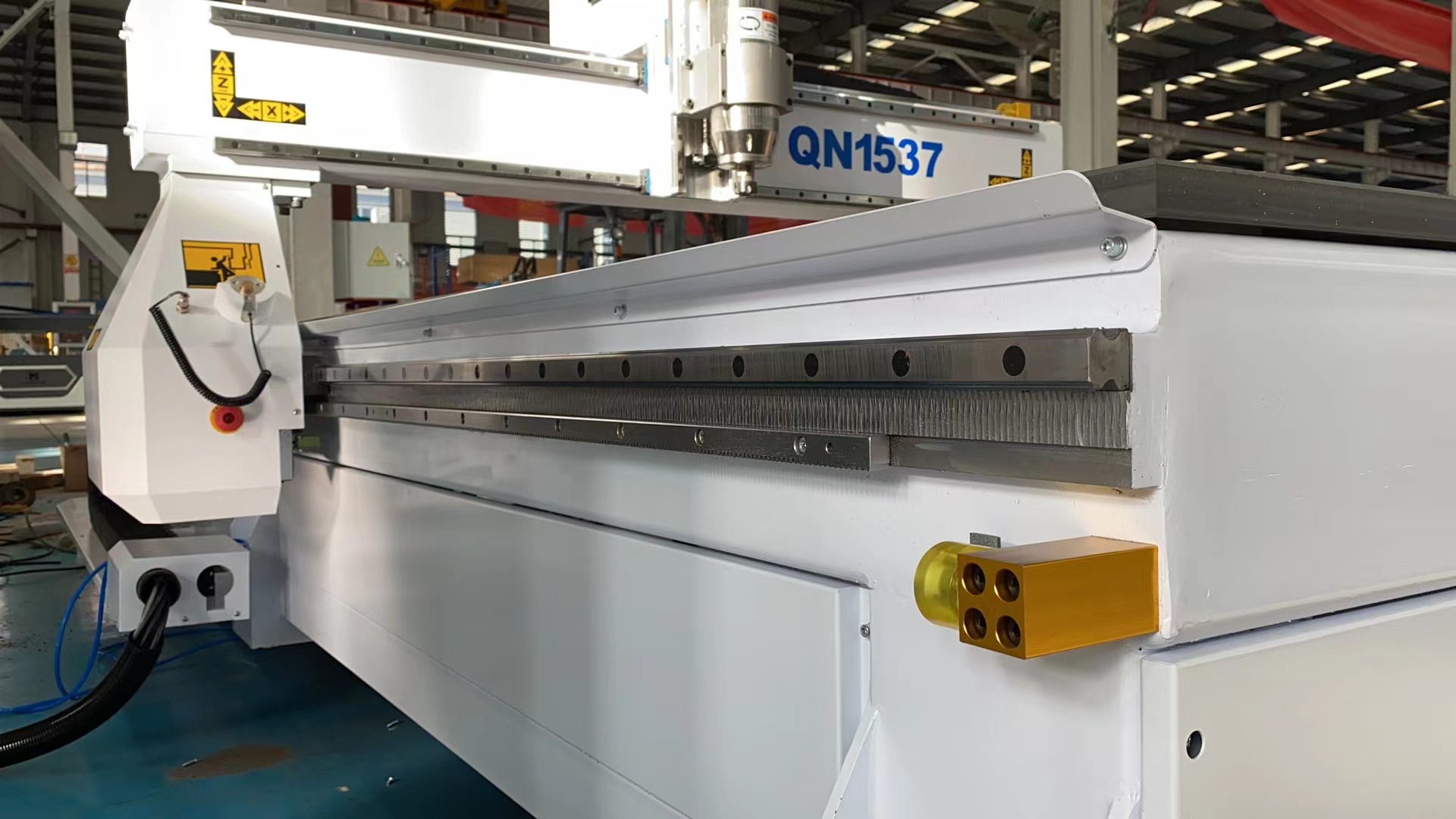

| X,Y ,Z Structure | XY Gear Wheel Z ball screw |
| Max. Power Consumption(Without spindle) | Within 15KW |
| Max. Rapid Travel Rate | 25000mm/min |
| Max. Working Speed | 20000mm/min |

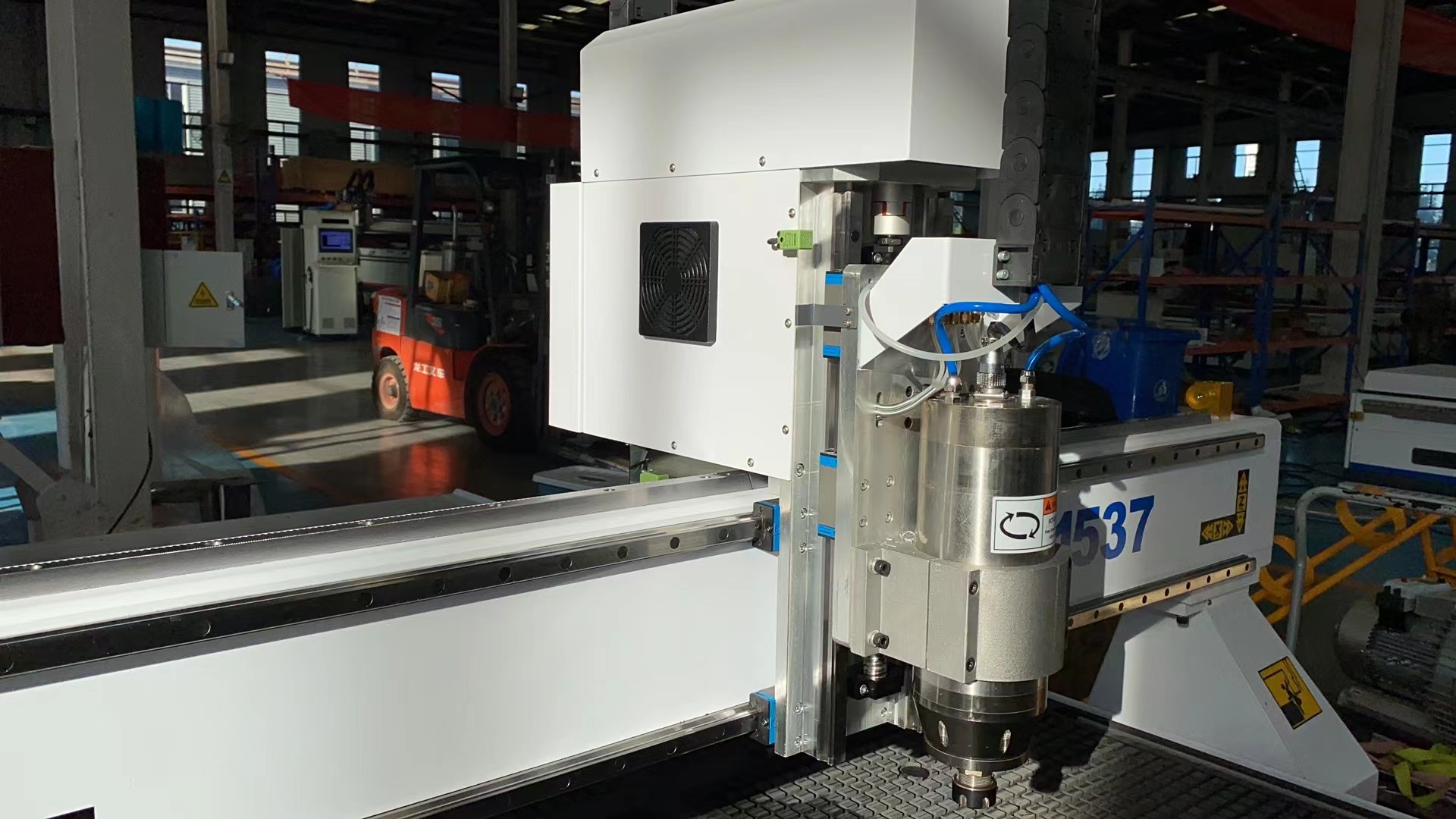

| Spindle | 5.5KW cooled spindle |
| Spindle Speed | 0-24000rpm |
| Drive Motor | Leadshine servo system |
| Command | G-code*.u00*.mmg*.plt |
| Working voltage | AC380V/50Hz-60HZ |

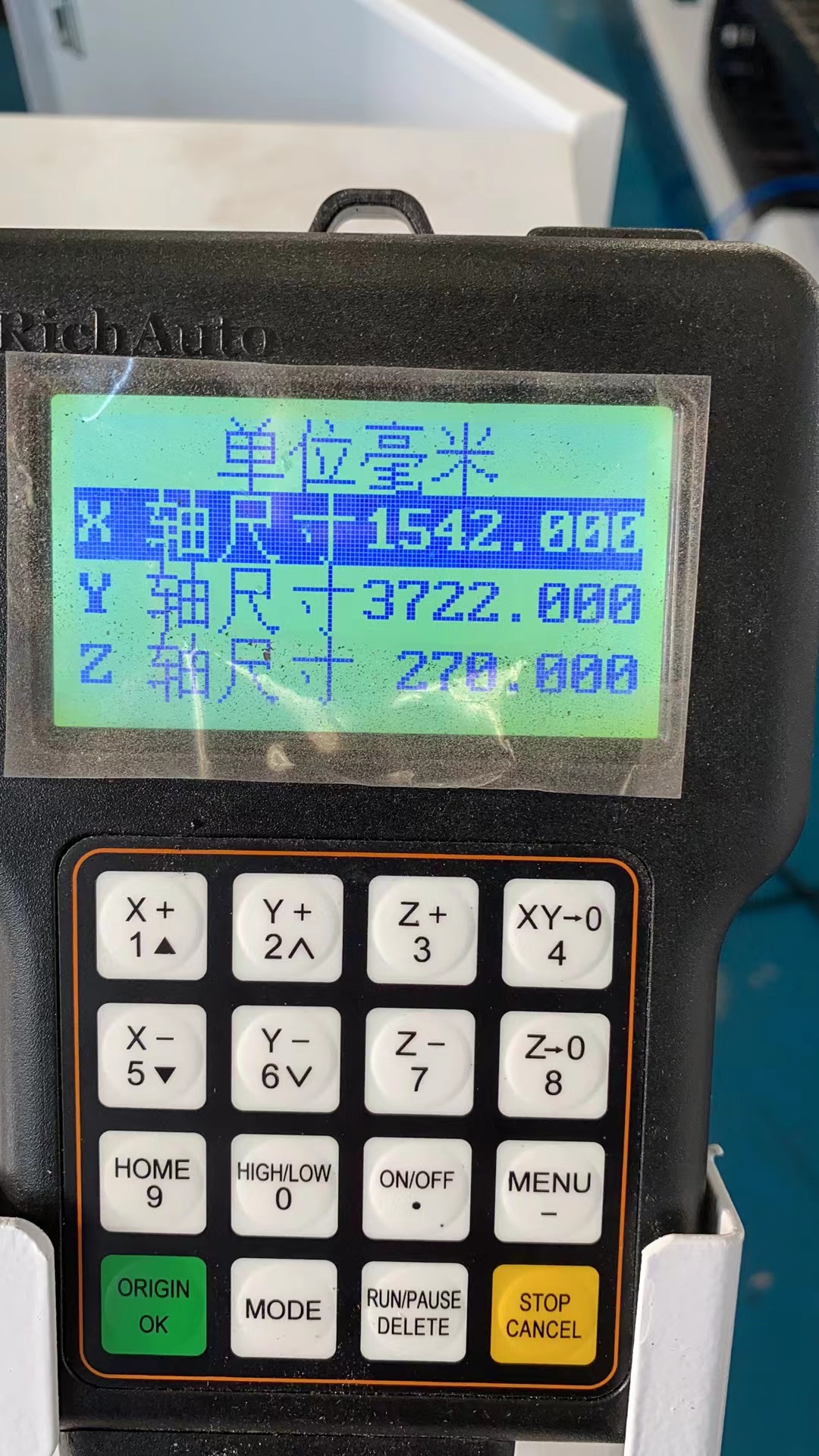

| Control System | NK105 control |
