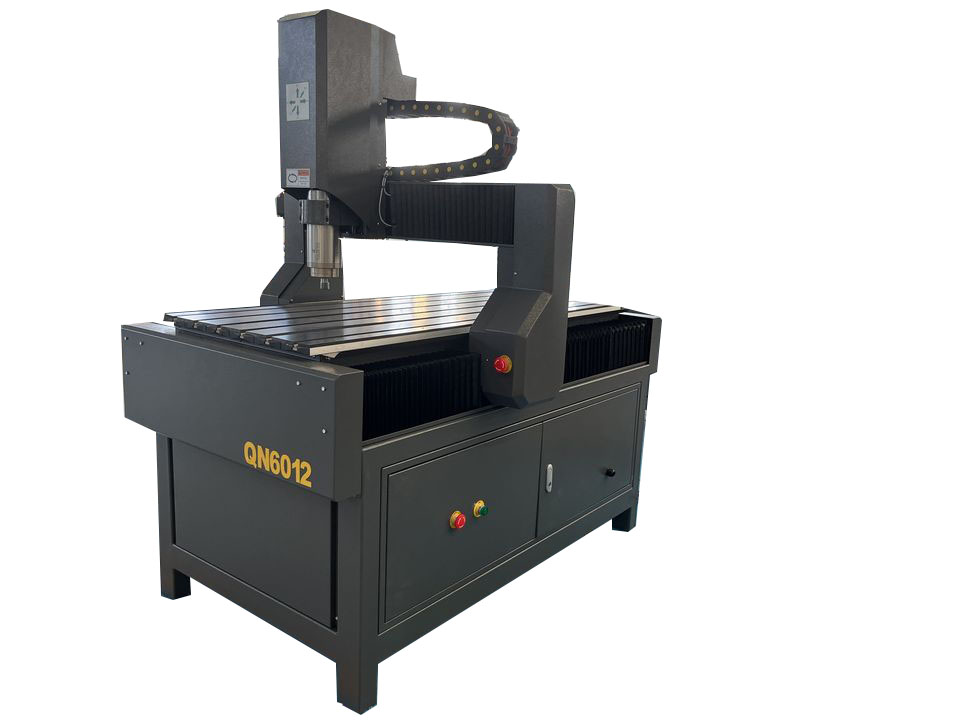

QN6012 Mini CNC Router For Adversting And Guitar Making
|
Description & Specifications: |
|
X Working Area |
600mm |
|
Y Working Area |
1200mm |
|
Z Working Area |
200mm |
|
Rotary Axis |
100*800mm |
|
Traveling Positioning Accuracy |
±0.05mm |
|
Repositioning Positioning Accuracy |
±0.02mm |
|
X,Y ,Z Structure |
ball screw |
|
Max. Power Consumption(Without spindle) |
2KW |
|
Max. Rapid Travel Rate |
6000mm/min |
|
Max. Working Speed |
25000mm/min |
|
Spindle |
2.2kw water cooled spindle |
|
Spindle Speed |
0-24000rpm |
|
Drive Motor |
Stepper system |
|
Command |
G-code*.u00*.mmg*.plt |
|
Working voltage |
1 Phase AC220V/50Hz |
|
Control System |
DSP A11 Control |
|
Control cabinet |
Inside machine |
Packing list
|
NAME |
UNIT |
QUANTITY |
REMARKS |
|
PACKAGE |
PC |
1 |
Standard woodcase |
|
CNC ROUTER |
PC |
1 |
QN6012 |
|
water spindle |
SET |
1 |
2.2kw water spindle |
|
Water pump |
SET |
1 |
Have |
|
Square guide rails |
SET |
6 |
20mm |
|
DSP controller |
SET |
1 |
From china |
|
stepper motor and driver |
SETS |
4 |
860H/450B |
|
Oil lubrication system |
SET |
1 |
|
|
Inverter |
SET |
1 |
China |
